SELECT A DIAGRAM

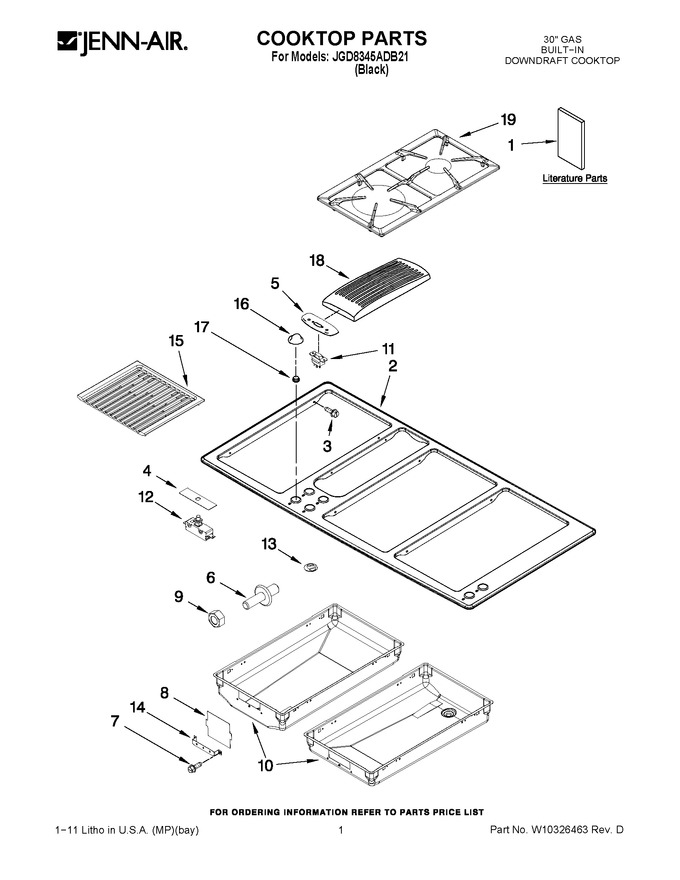

01 - Cooktop Parts


02 - Blower Unit Parts


03 - Burner Box Assembly


04 - Gas Controls


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P580-60		Installation Instructions (english)		Appelez-nous	-
1	8111P530-60		Use & Care Guide		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	8104P733-60		Wiring Diagram		Appelez-nous	-
1	8101P405-60		Instructions, Lp Conversion		Appelez-nous	-
1	8106P068-60		Card, Flow Tester				$ 6.65
1	8101P183-60		Ducting Instructions		Appelez-nous	-
1	8101P189-60		Installation Instructions (french)		Appelez-nous	-
2	2001F155-09		Top, Main (black)				$ 265.80
3	W11233072		Screw   (Replaces: 7101P342-60)			Immediately	$ 12.62
4	7003P129-60		Switch, Insul.		Appelez-nous	-
5	WPW10326967		Trim, Control Fan (black)   (Replaces: W10326967)				$ 93.38
6	71001764		Pin, Locator   (Replaces: 7113P020-60)				$ 8.68
7	WP489128		Screw   (Replaces: 7101P451-60)				$ 9.79
8	7003P130-60		Block, Ceramic				$ 29.24
9	Y052721		Nut   (Replaces: 7103P160-60)				$ 21.38
10	3401F099-19		Pan, Grill (left)				$ 188.12
10	3401F066-19		Pan, Grill (right)		Appelez-nous	-
11	WPW10331927		Switch, Fan (black)   (Replaces: W10298869)				$ 92.24
12	WP7450P012-60		Switch, Snap   (Replaces: 7403P654-60)			Immediately	$ 135.54
13	7212P053-60		Seal, Pan		Appelez-nous	-
14	7112P150-60		Clip		Appelez-nous	-
15	7518P070-60		Grate, Grill		Appelez-nous	-
16	WP7733P314-60		Knob, Control (black)   (Replaces: 7733P314-60)				$ 6.47
16	7733P313-60		Knob, Control (black Dd)				$ 39.24
17	7103P164-60		Palnut		Appelez-nous	-
18	7772P046-60		Grille, Air (black)				$ 102.11
19	WP7518P483-60		Grate, Burner (black)   (Replaces: 7518P483-60)				$ 186.73

    View Diagram in Separate Window       Print Part List
