01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly

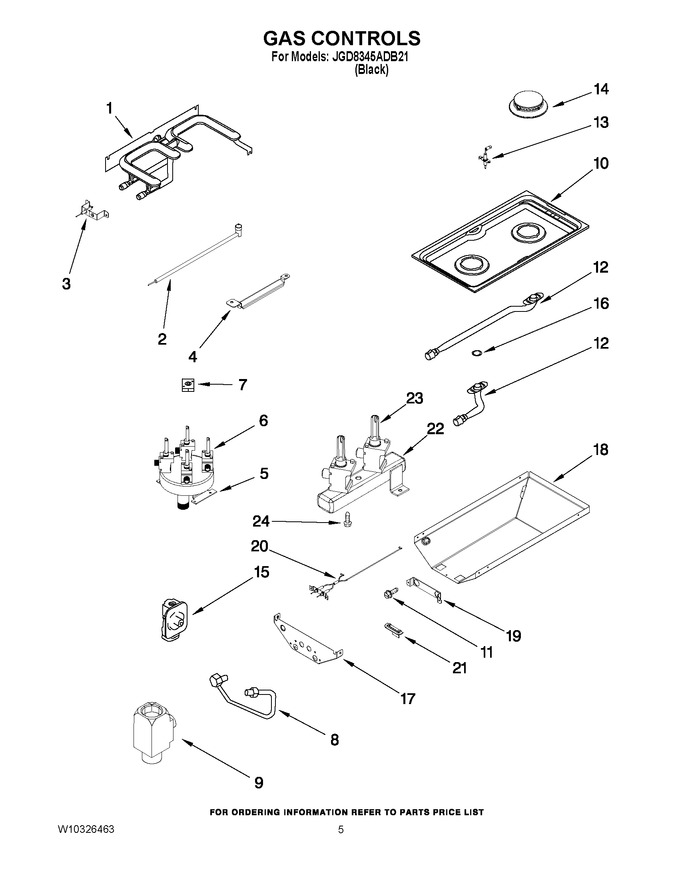

04 - Gas Controls
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7505P290-60 | E-burner, Grill |
|
- | |||||
| 2 | WP74006072 | Ignitor, E-burner (Replaces: 7432P112-60) |
|
Immediately | $ 96.71 | ||||
| 3 | WP74006073 | Ignitor, Ground Assembly (Replaces: 7432P116-60) |
|
$ 85.70 | |||||
| 4 | 3604F337-50 | Shield, Ignitor Bracket |
|
$ 55.94 | |||||
| 5 | 7513P489-60 | Manifold, (4-burner) |
|
$ 276.52 | |||||
| 6 | WPY04100188 | Valve, Top Burner (4-burner) (left) (Replaces: 7502P371-60) |
|
$ 222.85 | |||||
| 6 | WP74006156 | Valve, Top Burner (4-burner) (right) (Replaces: 7502P372-60) |
|
$ 248.17 | |||||
| 7 | WP74006955 | Switch, Valve (single) (Replaces: 7403P691-60) |
|
$ 125.41 | |||||
| 7 | WP74006956 | Switch, Valve (double) (Replaces: 7403P692-60) |
|
$ 133.23 | |||||
| 8 | 7506P309-60 | Tube, Burner (crossover) |
|
- | |||||
| 8 | 7506P280-60 | Tube, Burner (center Front) |
|
- | |||||
| 8 | 7506P281-60 | Tube, Burner (center Rear) |
|
- | |||||
| 8 | 7506P257-60 | Tube, Burner (left Rear) |
|
$ 76.44 | |||||
| 8 | 7506P256-60 | Tube, Burner (left Front) |
|
$ 77.02 | |||||
| 8 | 7506P254-60 | Tube, Burner (right Front) |
|
- | |||||
| 8 | 7506P255-60 | Tube, Burner (right Rear) |
|
- | |||||
| 9 | 7507P227-60 | Adapter, Tee |
|
- | |||||
| 10 | WP2001F175-09 | Cartridge, Top (Replaces: 2001F175-09) |
|
$ 311.71 | |||||
| 11 | W10828565 | Screw (Replaces: 7101P635-60) |
|
$ 6.70 | |||||
| 12 | WP7538P009-60 | Venturi, Rear (Replaces: 7538P009-60) |
|
$ 207.39 | |||||
| 12 | WP7538P008-60 | Venturi, Front (Replaces: 7538P008-60) |
|
$ 182.76 | |||||
| 13 | 74004053 | Ignitor, Top Burner (Replaces: 7432P100-60) |
|
Immediately | $ 24.25 | ||||
| 14 | WP3403M075-10 | Assy., Burner (Replaces: 3403M075-10) |
|
Immediately | $ 144.11 | ||||
| 15 | W11106948 | Reg., Pressure (Replaces: 7510P075-60) |
|
Immediately | $ 215.01 | ||||
| 16 | WP74005893 | Seal, Brass (Replaces: 7212P067-60) |
|
$ 6.64 | |||||
| 17 | 4005F791-80 | Cover, Cartridge |
|
$ 35.38 | |||||
| 18 | 4001F155-80 | Housing, Cartridge |
|
- | |||||
| 19 | 3801F704-51 | Bracket, Venturi Align |
|
- | |||||
| 20 | WP74005890 | Assembly, Ignitor/block (Replaces: 7432P120-60) |
|
$ 73.14 | |||||
| 21 | 7724P179-60 | Guard, Corner |
|
$ 27.72 | |||||
| 22 | 7513P264-60 | Manifold, (2-burner) |
|
$ 70.74 | |||||
| 23 | WP7502P384-60 | Valve, Top Burner (2-burner) (Replaces: 7502P384-60) |
|
$ 240.84 | |||||
| 24 | 7101P044-60 | Screw, Valve |
|
- | |||||
| NI | 74006049 | Kit, Lp Orifice (4 Burner) (Replaces: 5700A881-60) |
|
$ 63.50 |
