Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4005F647-51 Cover, Gas Appelez-nous -
2 8312P150-60 Jar,lid Appelez-nous -
3 3601F309-51 Baffle, Burner Box Appelez-nous -
4 WPY707869 Jar, Drain   (Replaces: 8312P120-60) Special Order $ 61.43

5 8401P005-60 Box, Burner Appelez-nous -
6 71003131 Screw, 1/4-20x4   (Replaces: 7101P472-60) In-Stock Immediately $ 6.07


    View Diagram in Separate Window     Print Icon   Print Part List

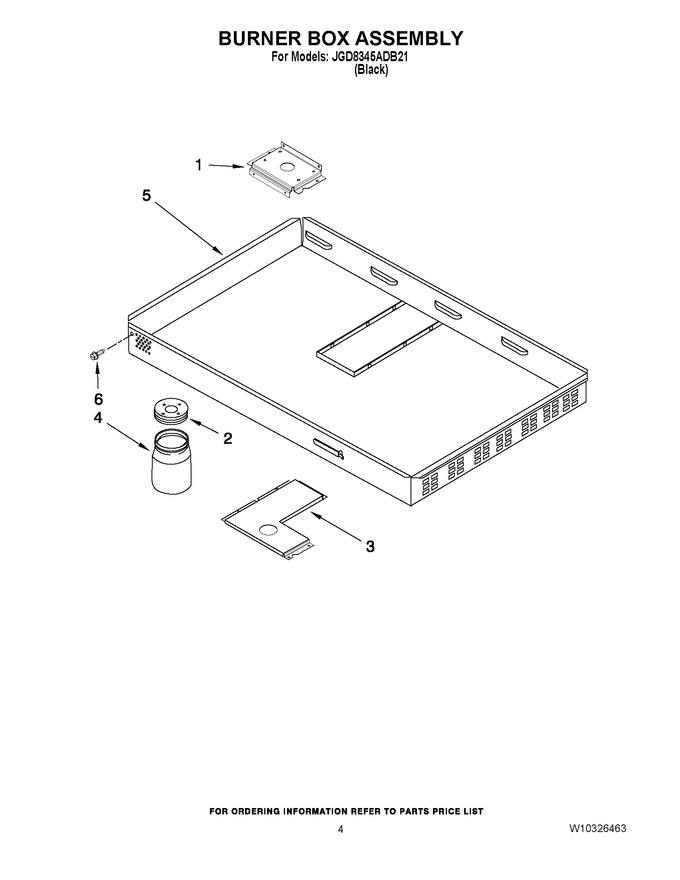

Diagram for JGD8345ADB21
