01 - Cover Sheet

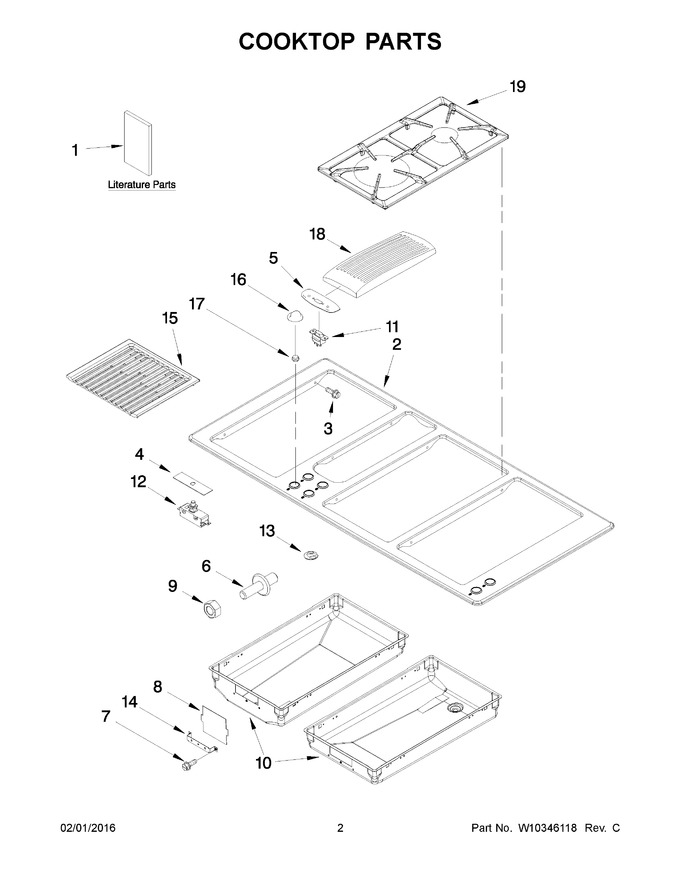

02 - Cooktop Parts
03 - Blower Plenum Parts
04 - Burner Box Assembly Parts
05 - Gas Control Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P580-60 | Instructions, Installation |
|
- | |||||
| 2 | 2001F155-09 | Top, Main |
|
$ 265.80 | |||||
| 3 | W11233072 | Screw (Replaces: 7101P342-60) |
|
Immediately | $ 12.62 | ||||
| 4 | 7003P129-60 | Switch, Insulator |
|
- | |||||
| 5 | WPW10326967 | Trim, Control Fan (Replaces: W10326967) |
|
$ 93.38 | |||||
| 6 | 71001764 | Pin, Locator (Replaces: 7113P020-60) |
|
$ 8.68 | |||||
| 7 | WP489128 | Screw (Replaces: 7101P451-60) |
|
$ 9.79 | |||||
| 8 | 7003P130-60 | Block, Ceramic |
|
$ 29.24 | |||||
| 9 | Y052721 | Nut (Replaces: 7103P160-60) |
|
$ 21.38 | |||||
| 10 | 3401F066-19 | Pan, Grill (right) |
|
- | |||||
| 11 | WPW10331927 | Switch, Fan (Replaces: W10331927) |
|
$ 92.24 | |||||
| 12 | WP7450P012-60 | Switch, Snap (Replaces: 7403P654-60) |
|
Immediately | $ 135.54 | ||||
| 13 | 7212P053-60 | Seal, Pan |
|
- | |||||
| 14 | 7112P150-60 | Clip, Terminal Block |
|
- | |||||
| 15 | 7518P070-60 | Grate, Grille |
|
- | |||||
| 16 | WP7733P314-60 | Knob, Control (black) (Replaces: 7733P314-60) |
|
$ 6.47 | |||||
| 17 | 7103P164-60 | Palnut, Fan Switch |
|
- | |||||
| 18 | 7772P046-60 | Grille, Air |
|
$ 102.11 | |||||
| 19 | WP7518P483-60 | Grate, Burner (Replaces: 7518P483-60) |
|
$ 186.73 | |||||
| 10A | 3401F099-19 | Pan, Grill (left) |
|
$ 188.12 | |||||
| 16A | 7733P313-60 | Knob, Control (black (downdraft)) |
|
$ 39.24 | |||||
| 1A | 8111P530-60 | Guide, Use & Care |
|
- | |||||
| 1B | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1D | 8101P183-60 | Instructions, Ducting |
|
- | |||||
| 1E | 8101P189-60 | Instructions, French |
|
- | |||||
| 1F | 8101P405-60 | Instructions, Lp Conversion |
|
- | |||||
| NI | 5112P331-60 | Wire (yellow) |
|
- | |||||
| NI | 5112P754-60 | Wire (blue) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 5170P966-60 | Harness, Pan Switch |
|
$ 24.82 | |||||
| NI | 5170P925-60 | Harness, Left Ceramic Block |
|
$ 40.90 | |||||
| NI | 5170P922-60 | Harness, Spark Supply |
|
$ 184.90 | |||||
| NI | 5170P926-60 | Harness, Right Ceramic Block |
|
$ 126.63 | |||||
| NI | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| NI | 3188867 | Cord, Power (Replaces: 7402P087-60) |
|
$ 168.08 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 |
