Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10777873 Assembly, Plenum Special Order $ 82.61

2 W10777874 Assembly, Scroll Special Order $ 55.82

3 4026F008-51 Ring, Inlet Special Order $ 7.43

4 8038P003-60 Retainer Special Order $ 9.13

5 7104P007-60 Cover, Clip Appelez-nous -
6 WPW10241953 Motor, Blower   (Replaces: W10241953) Special Order $ 269.71

7 WPY707985 Wheel, Blower   (Replaces: 7114P005-60) In-Stock Immediately $ 145.55

8 WPY707702 Nut, Lock   (Replaces: 7103P162-60) In-Stock Immediately $ 6.26

9 WP71001171 Screw   (Replaces: 7101P460-60) Special Order $ 6.26

10 4005F648-80 Cover, Plenum Special Order $ 52.33

11 WP707929 Filter, Grease   (Replaces: 8312P121-60) In-Stock Immediately $ 44.51

12 8312P151-60 Guard, Blower Appelez-nous -
13 12001452 Relay, Fan   (Replaces: 7428P030-60) Special Order $ 179.93

14 8215557 Module, Spark (4+0)   (Replaces: 7431P060-60) In-Stock Immediately $ 124.99

15 8019P018-60 Relief, Strain Appelez-nous -
16 4026F009-51 Ring, Restrictor Special Order $ 51.50

14A 8215556 Module, Spark (2+0)   (Replaces: 7431P059-60) Special Order $ 326.39

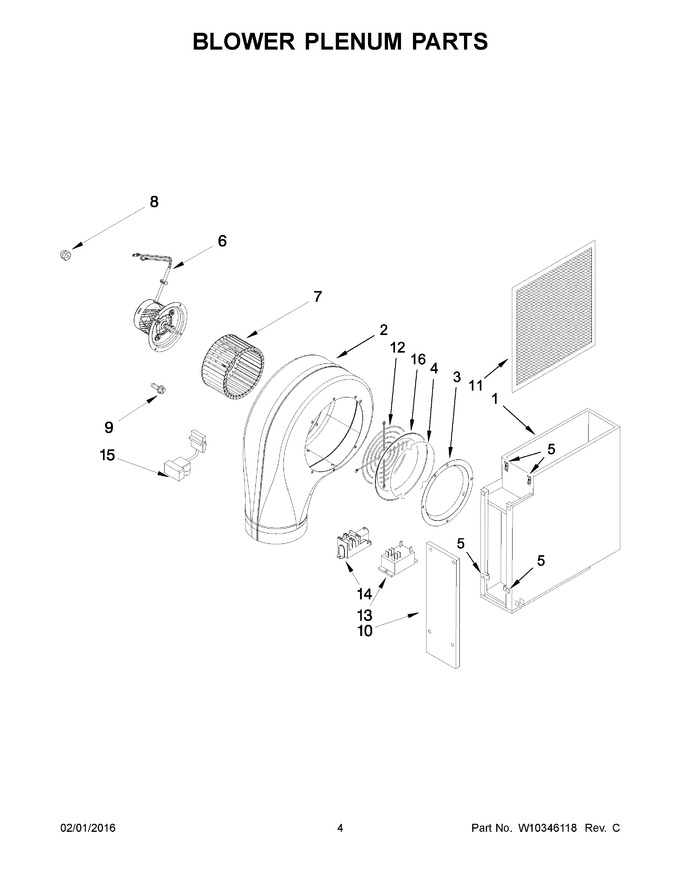

    View Diagram in Separate Window     Print Icon   Print Part List
