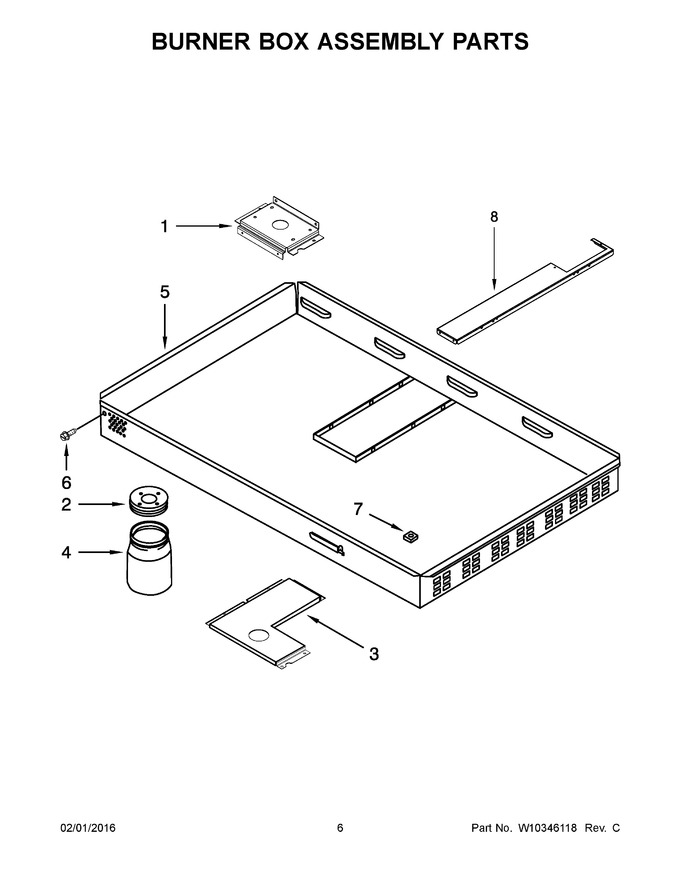

04 - Burner Box Assembly Parts


05 - Gas Control Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F647-51		Cover, Gas		Appelez-nous	-
2	8312P150-60		Lid, Jar		Appelez-nous	-
3	W10871225		Baffle, Burner Box   (Replaces: W10635792)		Appelez-nous	-
4	WPY707869		Jar, Grease   (Replaces: 8312P120-60)				$ 61.43
5	8401P005-60		Box, Burner		Appelez-nous	-
6	71003131		Screw, Support   (Replaces: 7101P472-60)			Immediately	$ 6.07
7	M0282009		Nut, Square   (Replaces: 7103P153-60)				$ 12.06
8	W10414473		Bracket, Support		Appelez-nous	-
