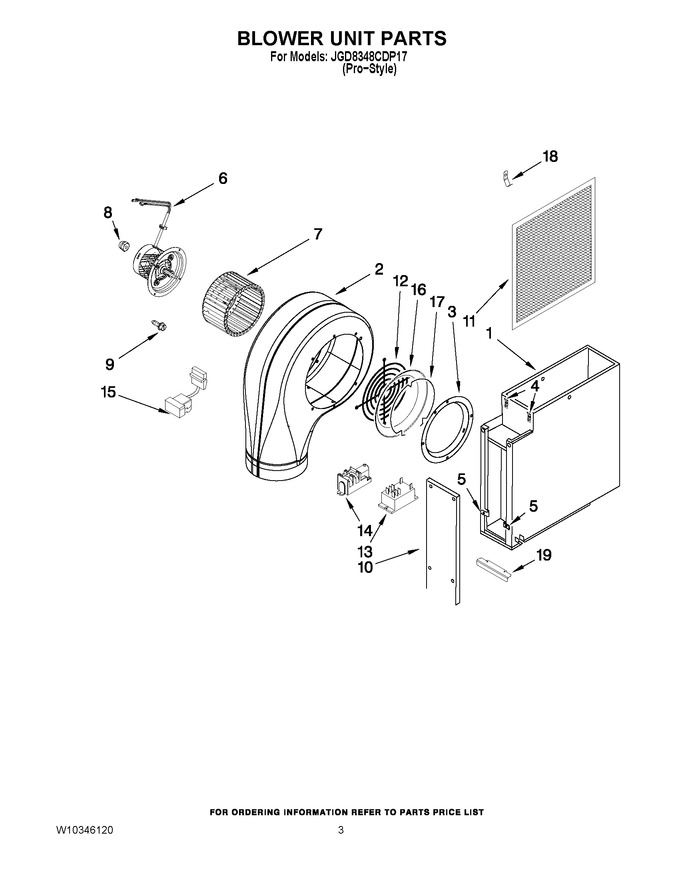

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Gas Controls
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2801W038-80 | Assy, Plenum |
|
$ 82.61 | |||||
| 2 | 2822W001-80 | Blwr Assy, Scroll |
|
- | |||||
| 3 | 4026F008-51 | Ring, Inlet |
|
$ 7.43 | |||||
| 4 | 7104P007-60 | Clip |
|
- | |||||
| 5 | 7104P007-60 | Cover, Clip |
|
- | |||||
| 6 | WPW10241953 | Motor, Blower (Replaces: W10241953) |
|
$ 269.71 | |||||
| 7 | WPY707985 | Wheel, Blower (Replaces: 7114P005-60) |
|
Immediately | $ 145.55 | ||||
| 8 | 7103P192-60 | Nut, Acorn |
|
- | |||||
| 9 | WP71001171 | Screw (Replaces: 7101P460-60) |
|
$ 6.26 | |||||
| 10 | 4005F648-80 | Cover, Plenum Access |
|
$ 52.33 | |||||
| 11 | WP707929 | Filter, Grease (Replaces: 8312P121-60) |
|
Immediately | $ 44.51 | ||||
| 12 | 8312P151-60 | Guard, Blower |
|
- | |||||
| 13 | 12001452 | Relay, Fan (Replaces: 7428P030-60) |
|
$ 179.93 | |||||
| 14 | 8215556 | Module, Spark (2 + 0 120v) (Replaces: 7431P059-60) |
|
$ 326.39 | |||||
| 14 | 8215557 | Module, Spark (4 + 0 120v) (Replaces: 7431P060-60) |
|
Immediately | $ 124.99 | ||||
| 15 | 8019P018-60 | Relief, Strain |
|
- | |||||
| 16 | 4026F009-51 | Ring, Restrictor |
|
$ 51.50 | |||||
| 17 | 8038P003-60 | Retainer |
|
$ 9.13 | |||||
| 18 | 3804F188-50 | Retainer, Filter |
|
- | |||||
| 19 | 3801F424-51 | Bracket, Plenum |
|
- |
