View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Blower Unit Parts

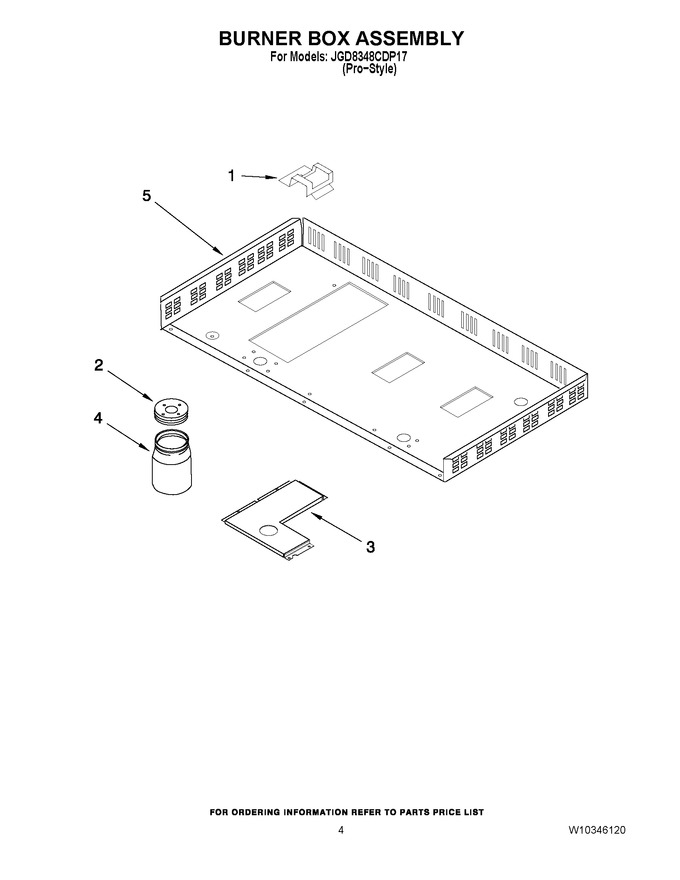

03 - Burner Box Assembly
04 - Gas Controls
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F505-51 | Bracket, Orifice |
|
- | |||||
| 2 | 8312P150-60 | Jar,lid |
|
- | |||||
| 3 | 3601F261-51 | Baffle, Burner Box |
|
$ 216.98 | |||||
| 4 | WPY707869 | Jar, Drain (Replaces: 8312P120-60) |
|
$ 61.43 | |||||
| 5 | 4011F461-51 | Box, Burner |
|
- |
