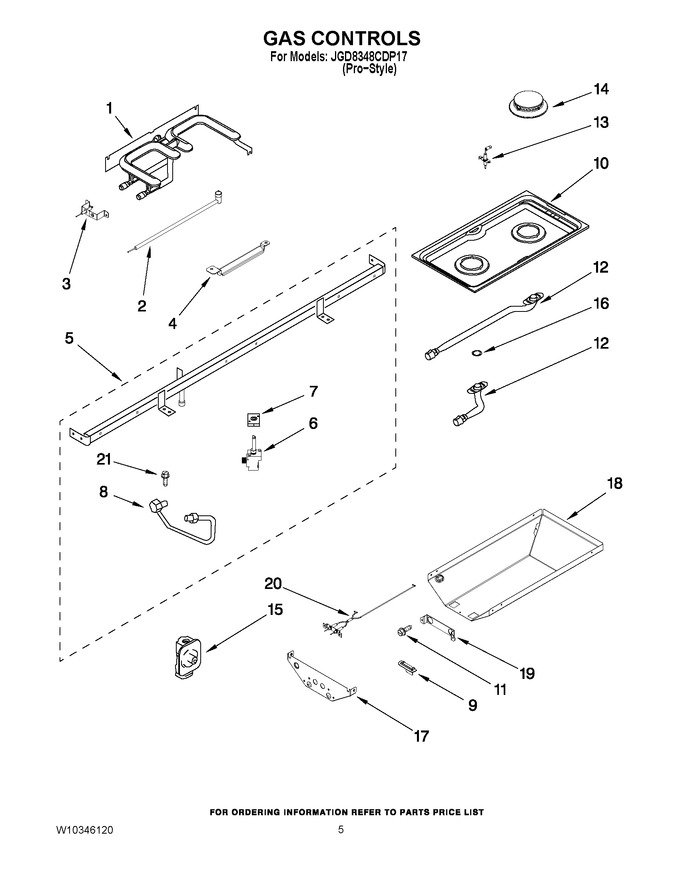

SELECT A DIAGRAM

01 - Cooktop Parts


02 - Blower Unit Parts


03 - Burner Box Assembly


04 - Gas Controls


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7505P290-60		E-burner, Grill		Appelez-nous	-
2	WP74006072		Ignitor, E-burner   (Replaces: 7432P112-60)			Immediately	$ 96.71
3	WP74006073		Ignitor, Ground Assembly   (Replaces: 7432P116-60)				$ 85.70
4	3604F337-50		Shield, Ignitor Bracket				$ 55.94
5	7513P455-60		Manifold		Appelez-nous	-
6	7502P385-60		Burner Valve (1650 Min Btu)				$ 214.50
6	Y04100184		Burner Valve (right)   (Replaces: 7502P335-60)				$ 247.35
6	7502P336-60		Burner Valve (left)		Appelez-nous	-
7	74007003		Switch, Valve (single)   (Replaces: 7403P694-60)				$ 110.67
7	7403P695-60		Switch, Valve (double)		Appelez-nous	-
8	7506P166-60		Tube, Burner (lf)		Appelez-nous	-
8	7506P163-60		Tube, Burner (cr, Rr)				$ 75.33
8	7506P164-60		Tube, Burner (cf, Rf)		Appelez-nous	-
8	7506P310-60		Tube, Burner (lr)		Appelez-nous	-
9	7724P179-60		Guard, Corner				$ 27.72
10	WP2001F175-09		Cartridge, Top   (Replaces: 2001F175-09)				$ 311.71
11	W10828565		Screw   (Replaces: 7101P635-60)				$ 6.70
12	WP7538P009-60		Venturi, Rear   (Replaces: 7538P009-60)				$ 207.39
12	WP7538P008-60		Venturi, Front   (Replaces: 7538P008-60)				$ 182.76
13	74004053		Ignitor, Top Burner   (Replaces: 7432P100-60)			Immediately	$ 24.25
14	WP3403M075-10		Assy., Burner   (Replaces: 3403D075-10)			Immediately	$ 144.11
15	W11106948		Reg., Pressure   (Replaces: 7510P075-60)			Immediately	$ 215.01
16	WP74005893		Seal, Brass   (Replaces: 7212P067-60)				$ 6.64
17	4005F791-80		Cover, Cartridge				$ 35.38
18	4001F155-80		Housing, Cartridge		Appelez-nous	-
19	3801F704-51		Bracket, Venturi Align		Appelez-nous	-
20	WP74005890		Assembly, Ignitor/block   (Replaces: 7432P120-60)				$ 73.14
21	7101P044-60		Screw, Valve		Appelez-nous	-
NI	5700D880-60		Kit, Lp Orifice (4 Burner)		Appelez-nous	-
