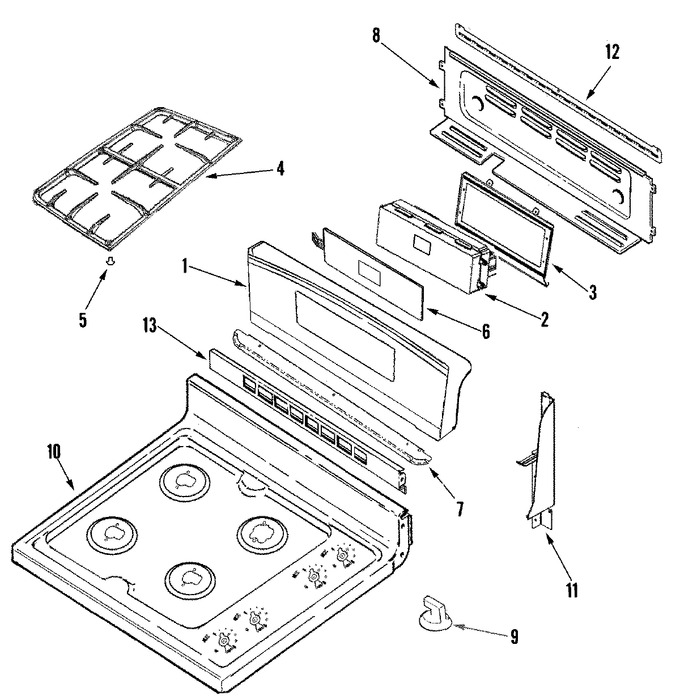

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010180 | Panel, Control (stl) | 10 |
|
- | ||||
| 2 | 74011884 | Control | 10 |
|
- | ||||
| 3 | 74010217 | Bracket, Clock | 10 |
|
- | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | WP7101P434-60 | Screw (Replaces: 71001394) | 12 |
|
$ 6.26 | ||||
| 4 | 74011889 | Grate, Double | 10 |
|
- | ||||
| 5 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 6 | 74011883 | Switch, Membrane | 10 |
|
- | ||||
| 6 | 74011883 | Switch, Membrane | 16 |
|
- | ||||
| 7 | 74003975 | Screw (8abx3/8-blk) | 10 |
|
$ 12.02 | ||||
| 7 | 74010183 | Shield, Heat Visor (blk) | 10 |
|
- | ||||
| 7 | 74009978 | Shield, Wire | 12 |
|
- | ||||
| 8 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74010983 | Cover, Rear Wire | 10 |
|
- | ||||
| 9 | 74011886 | Knob | 10 |
|
- | ||||
| 9 | WP74005934 | Grommet (Replaces: 74005934) | 10 |
|
$ 7.66 | ||||
| 9 | 74007368 | Grommet | 10 |
|
$ 6.11 | ||||
| 10 | 74011885 | Top, Main (blk) | 10 |
|
- | ||||
| 11 | 74010202 | Support, Backguard (lt-blk) | 10 |
|
- | ||||
| 11 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 11 | 74010201 | Support, Backguard (rt-blk) | 10 |
|
- | ||||
| 11 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 12 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 13 | 74009797 | Trim, Vent (blk) | 10 |
|
- | ||||
| 13 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 |
