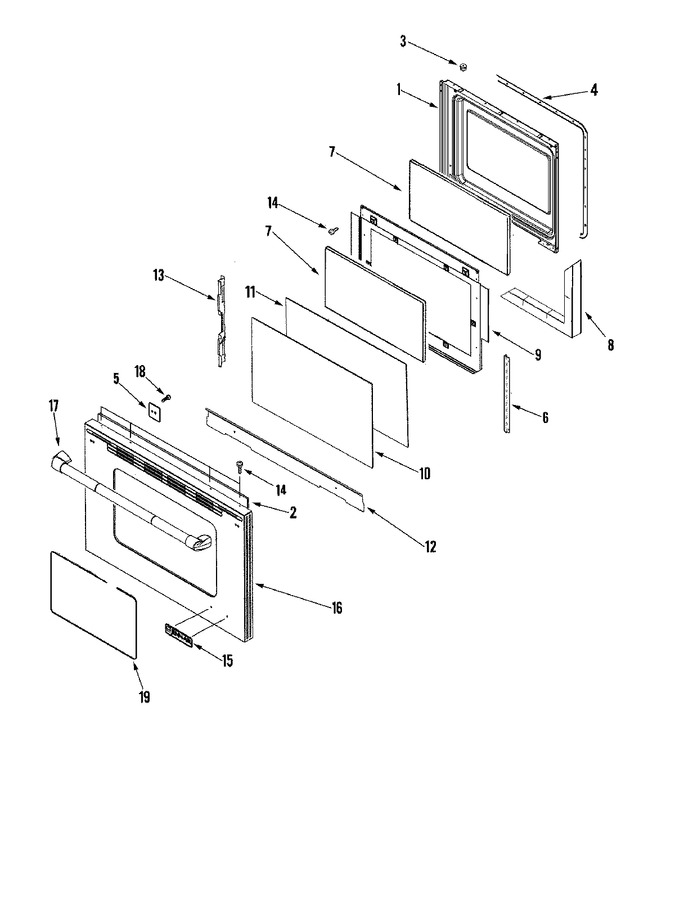

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011456		Lining, Door	10	Appelez-nous	-
2	WP74010043		Insulation, Door (foil)   (Replaces: 74010043)	10			$ 67.18
3	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
4	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
5	74010785		Plate, Back (handle Mtg)	10	Appelez-nous	-
6	74011458		Bracket, Inner Glass	10	Appelez-nous	-
7	74003645		Glass, Inner	10		Immediately	$ 162.53
8	74003647		Insulation, Oven Door	10	Appelez-nous	-
9	3601F373-51		Baffle, Oven Door   (Replaces: 74011457)	10			$ 244.22
10	74010196		Glass, Outer Door (stl-lwr)	10	Appelez-nous	-
11	74003649		Glass, Door	10	Appelez-nous	-
12	74011049		Shield, Door	10	Appelez-nous	-
12	74011921		Shield, Lower Door	11	Appelez-nous	-
13	74010041		Retainer, Door Glass	10	Appelez-nous	-
14	W11233072		Screw, 8 X 1/2   (Replaces: 74002979)	10		Immediately	$ 12.62
15	7103P166-60		Palnut   (Replaces: 715500)	10			$ 15.91
15	74006889		Nameplate (stl)	10			$ 43.24
16	74011887		Panel, Door	10	Appelez-nous	-
17	WP7701P475-60		Handle, Door (30`` Pro)   (Replaces: 74008500)	10			$ 251.94
18	74011751		Screw (10-24x 1/2)	10	Appelez-nous	-
19	74008916		Gasket, Window	10			$ 127.97
