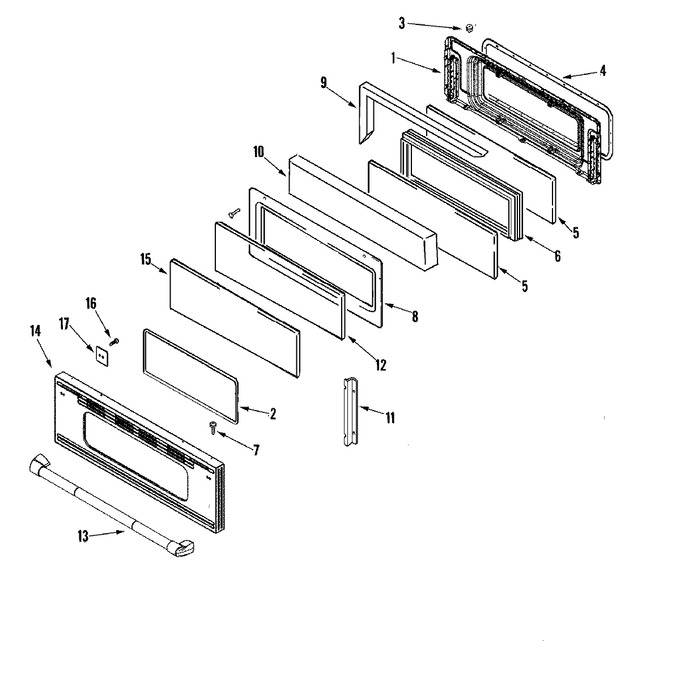

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004564		Lining, Oven Door	10	Appelez-nous	-
2	WP74009029		Gasket, Door Window   (Replaces: 74009029)	10		Immediately	$ 145.22
3	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
4	WP7201P091-60		Gasket, Oven Door   (Replaces: 74004565)	10			$ 137.97
5	74004566		Glass, Door (inner)	10			$ 83.85
6	74004567		Frame, Glass	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	74009976		Baffle, Oven Door	10	Appelez-nous	-
9	74004569		Insulation, Door (8.5 X 21.5)	10	Appelez-nous	-
10	74004570		Insulation, Door (3 X 8.7)	10	Appelez-nous	-
11	W11233072		Screw, 8 X 1/2   (Replaces: 74002979)	10		Immediately	$ 12.62
11	74004896		Retainer, Glass Support	10	Appelez-nous	-
12	74004691		Glass, Oven Door (inner)	10			$ 120.18
13	WP7701P475-60		Handle, Door (30`` Pro)   (Replaces: 74008500)	10			$ 251.94
14	74011888		Panel, Door (upr)	10	Appelez-nous	-
15	74010194		Glass, Outer Door (stl-upr)	10	Appelez-nous	-
16	74011751		Screw (10-24x 1/2)	10	Appelez-nous	-
17	74010785		Plate, Back (handle Mtg)	10	Appelez-nous	-
