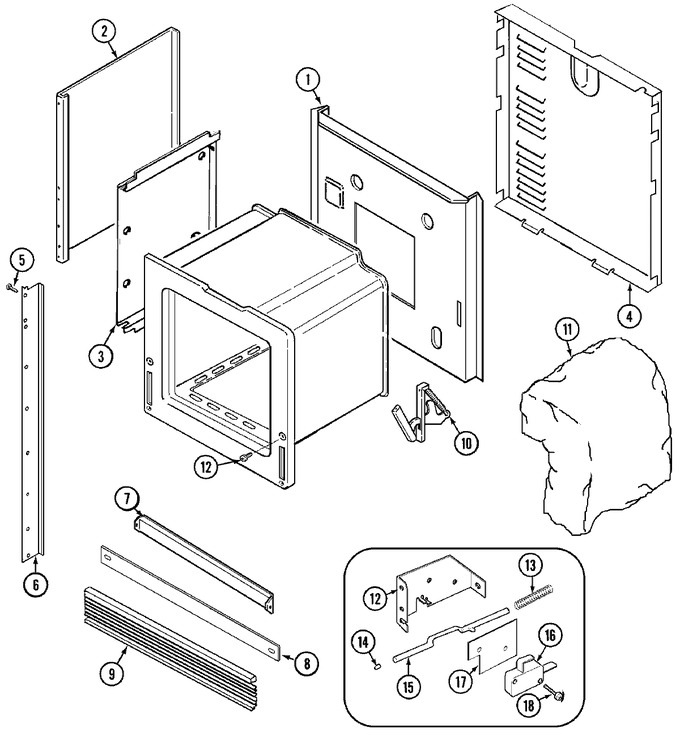

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004108		Back, Main	10	Appelez-nous	-
2	2618F083-51		Panel, Body	10	Appelez-nous	-
3	74001436		Retainer, Insulation (side)	10	Appelez-nous	-
4	74002240		Insulator, Oven Light	10	Appelez-nous	-
4	4005F405-51		Cover, Back	10	Appelez-nous	-
5	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	10		Immediately	$ 12.62
5	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
6	74004136		Extrusion, Side (lt-chr)	10	Appelez-nous	-
6	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 12.62
6	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
6	74004135		Extrusion, Side (rt-chr)	10	Appelez-nous	-
6	74004134		Extrusion, Sdie (lt-blk)	10	Appelez-nous	-
6	74004133		Extrusion, Side (rt-blk)	10	Appelez-nous	-
7	74001219		Baffle, Oven Front	10	Appelez-nous	-
8	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 12.62
8	4005F354-71		Strip, Bottom (wht)	10	Appelez-nous	-
8	4005F354-70		Strip, Bottom (blk)	10	Appelez-nous	-
8	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
9	74004131		Extrusion, Vent (lwr-blk)	10	Appelez-nous	-
9	74004130		Extrusion, Vent (lwr-chr)	10	Appelez-nous	-
10	WP74011141		Hinge, Door   (Replaces: 74003968)	10		Immediately	$ 128.06
11	74003036		Insulation, Oven Wrap	10	Appelez-nous	-
11	74003382		Insulation, Back/bottom	10	Appelez-nous	-
12	74001632		Bracket, Switch Actuator	10	Appelez-nous	-
13	74001629		Spring, Door Switch	10			$ 15.03
14	74001631		Bumper, Rod	10			$ 5.22
15	74003562		Rod, Door Light Switch	10	Appelez-nous	-
16	74001627		Insulator, Door Switch	10	Appelez-nous	-
16	74001802		Switch	10	Appelez-nous	-
17	74001872		Insulator, Switch	10	Appelez-nous	-
18	7101P330-60		Screw, Switch	10	Appelez-nous	-
