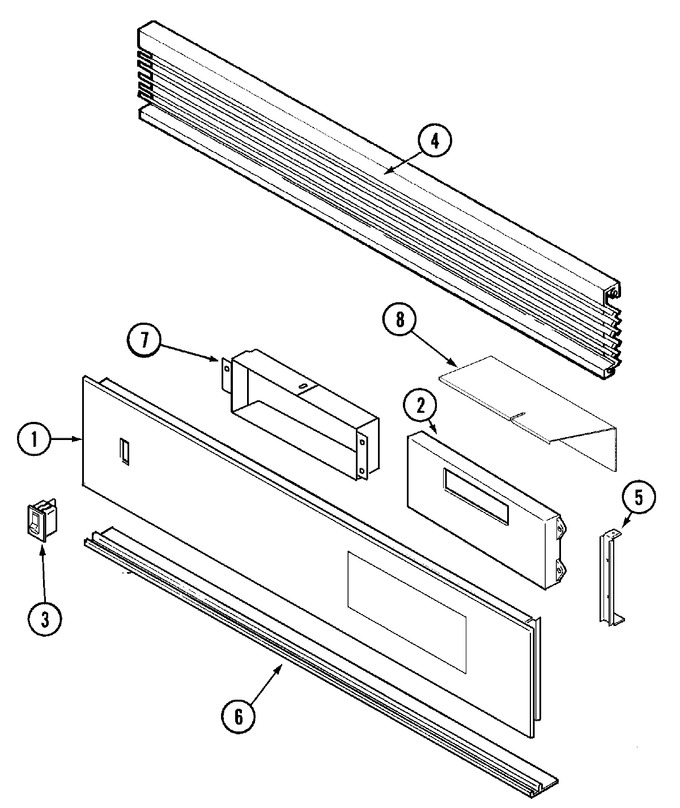

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
05 - Internal Controls
06 - Oven/base
07 - Wiring Information
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003494 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | 71003495 | Clock Assy. (blk) | 10 |
|
- | ||||
| 3 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 4 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 4 | 74004123 | Extrusion, Vent Grill (blk) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 71003305 | Bracket, Clock Mounting | 10 |
|
- | ||||
| 6 | 71003496 | Extrusion, Lower (blk) | 10 |
|
- | ||||
| 7 | 71003497 | Insulation, Fiberboard | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 71003498 | Shield, Vent | 10 |
|
- | ||||
| 10 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 10 | 74002109 | Cap, Disconnect 2 Circuit | 10 |
|
- | ||||
| 11 | 71003499 | Manual, Use & Care | 10 |
|
- | ||||
| 11 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 11 | 74004141 | Manual, Use & Care (fch) | 10 |
|
- | ||||
| 12 | 16009722 | Manual, Service-no Refund | 10 |
|
- |
