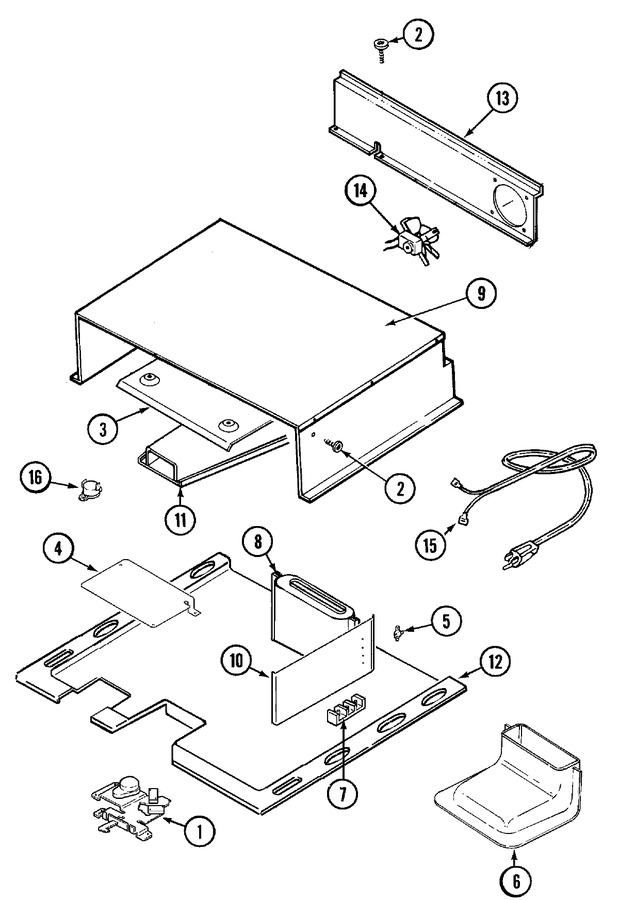

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003559		Latch, Door Lock	10	Appelez-nous	-
1	74005575		Door Lock Motor Assy.	15			$ 152.76
1	74003560		Insulation, Latch	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	3604F166-45		Shield, Heat	10	Appelez-nous	-
4	74003561		Retainer, Insulation	10	Appelez-nous	-
5	7403P249-60		Switch, Hi Limit	10	Appelez-nous	-
5	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	10			$ 6.98
6	7101P287-60		Screw, Metal Grounding	10			$ 12.03
6	4006W117-45		Box, Flue	10	Appelez-nous	-
7	7401P037-60		Block, Terminal	10	Appelez-nous	-
7	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	4006D128-45		Riser, Duct Assy.	10	Appelez-nous	-
9	4005F402-51		Cover, Top	10	Appelez-nous	-
10	74004127		Shield, Air	10	Appelez-nous	-
11	74004128		Support, Duct	10	Appelez-nous	-
11	4006D101-45		Duct Assy.	10	Appelez-nous	-
12	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
12	74004094		Retainer, Top Insulation	10	Appelez-nous	-
13	4001F083-51		Housing, Fan	10	Appelez-nous	-
13	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	7427P010-60		Fan Assy.	10	Appelez-nous	-
15	7402P043-60		Cord, Power	10	Appelez-nous	-
16	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	12			$ 6.98
16	74004098		Switch, Fan	12	Appelez-nous	-
17	74004120		Harness, Sensor & Lock	10	Appelez-nous	-
17	74009957		Harness, Sensor & Lock	15	Appelez-nous	-
