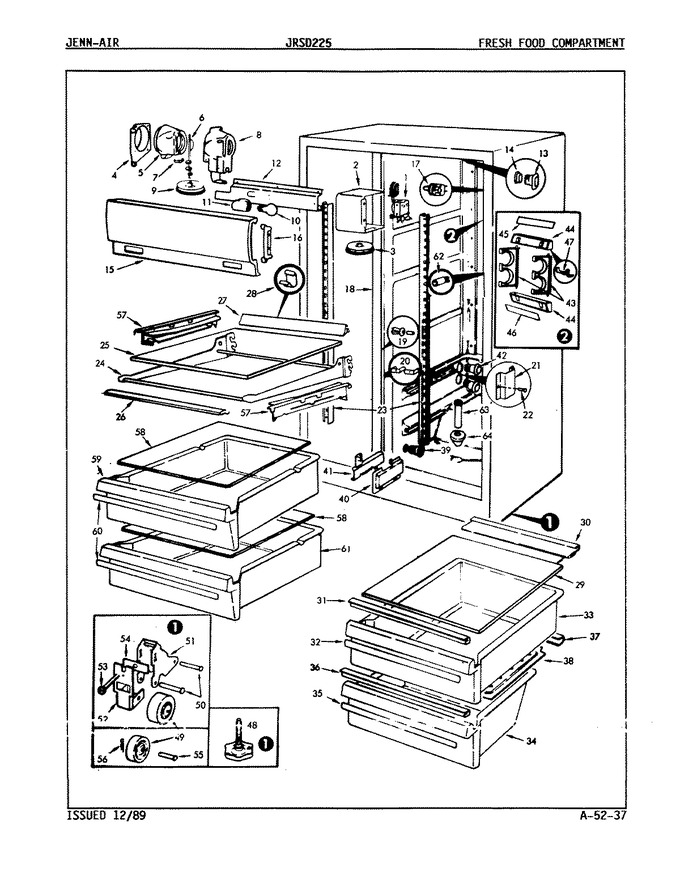

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52898-1		Insulator,temperature Control	-	Appelez-nous	-
1	65268-2		Control, Temperature	-	Appelez-nous	-
2	400053-1		Screw	-	Appelez-nous	-
2	53682-10		Housing, Temperature Control	-	Appelez-nous	-
4	53835-2		Orifice, Freezer Control	-	Appelez-nous	-
5	58767-1		Insulation, Housing	-	Appelez-nous	-
6	52587-1		Damper	-	Appelez-nous	-
7	52648-1		Spring, Baffle	-	Appelez-nous	-
8	58760-2		Housing, Freezer Control	-	Appelez-nous	-
8	400027-1		Screw	-	Appelez-nous	-
9	400001-1		Screw	-	Appelez-nous	-
9	29893-8		Knob, Freezer Control	-	Appelez-nous	-
10	W10887190		Bulb, Light   (Replaces: 55771)	-		Immediately	$ 16.48
11	29814-2		Receptacle, Light	-	Appelez-nous	-
12	59740-2		Housing, Light Socket & Wires	-	Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
13	57410-1		Tunnel	-	Appelez-nous	-
14	57411-1		Retainer	-	Appelez-nous	-
15	06100006		Shield, Light	-	Appelez-nous	-
16	53686-2		Support	-	Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
17	65512-1		Spacer	-	Appelez-nous	-
17	56432-2		Switch	-	Appelez-nous	-
18	59026-1-AM		Mullion	-	Appelez-nous	-
19	59920-3		Stud, Divider Channel Mounting	-	Appelez-nous	-
19	59920-9		Stud, (alm)	-	Appelez-nous	-
20	53060-4		Clip	-	Appelez-nous	-
21	62128-1		Air Deflector	-	Appelez-nous	-
22	28013-2		Rivet, Air Tunnel	-	Appelez-nous	-
23	58381-4		Rail, Shelf Support	-	Appelez-nous	-
23	400037-28		Screw	-	Appelez-nous	-
24	65618-3		Frame, Shelf	-	Appelez-nous	-
25	68405-9		Glass	-	Appelez-nous	-
26	66649-2		Trim, Shelves (front)	-	Appelez-nous	-
27	65276-15		Trim, Shelves (rear)	-	Appelez-nous	-
28	66333-1		Clip, Shelf Trim	-	Appelez-nous	-
29	65687-2		Shelf, Crisper	-	Appelez-nous	-
30	68157-2		Seal, Crisper Pan (rear)	-	Appelez-nous	-
31	65650-2		Seal, Crisper Pan (front)	-	Appelez-nous	-
32	68124-65		Handle, Crisper Pan	-	Appelez-nous	-
33	66637-34		Pan, Crisper	-	Appelez-nous	-
34	Y06100007		Pan, Meat	-	Appelez-nous	-
35	68124-65		Handle, Crisper Pan	-	Appelez-nous	-
36	65648-2		Seal, Meat Pan (front)	-	Appelez-nous	-
37	65649-2		Seal, Meat Pan (rear)	-	Appelez-nous	-
38	65608-2		Cover, Meat Pan	-	Appelez-nous	-
39	53726-2		Tunnel, Air (meat)	-	Appelez-nous	-
40	65737-2		Control Housing	-	Appelez-nous	-
41	65736-1		Slide Control, (meat)	-	Appelez-nous	-
41	56686-4		Clip	-	Appelez-nous	-
42	53726-1		Air Tunnel	-	Appelez-nous	-
42	68442-1		Spacer	-	Appelez-nous	-
43	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
43	56519-4		Rack, Wine	-	Appelez-nous	-
44	65689-1		Support, Wine Rack	-	Appelez-nous	-
45	65753-19		Insert, Wine Rack (plain)	-	Appelez-nous	-
46	06100008		Insert, Wine Rack (wine Rack)	-	Appelez-nous	-
47	58057-1		Spring, Wine Rack	-	Appelez-nous	-
48	W11117769		Leg, Leveling   (Replaces: 6012-8)	-		Immediately	$ 16.61
49	29834-2		Wheel	-	Appelez-nous	-
50	64965-1		Pin, Wheel	-	Appelez-nous	-
51	62794-1		Bracket, Wheel	-	Appelez-nous	-
52	62795-1		Faceplate Bracket	-	Appelez-nous	-
53	56487-1		Screw, Wheel Adjustment	-	Appelez-nous	-
54	65275-17		Screw	-	Appelez-nous	-
54	59101-1		Tapping Plate, Wheel	-	Appelez-nous	-
55	62580-1		Pivot Pin, Wheel (rear)	-	Appelez-nous	-
56	57418-1		Clip,food Liner Mount.(slides)	-	Appelez-nous	-
56	56438-1		Clip, Food Liner Mount.top&bot	-	Appelez-nous	-
56	62581-1		Clip, Retaining Wheel (rear)	-	Appelez-nous	-
56	66157-1		Wire Harness	-	Appelez-nous	-
57	68805-1		Slide Rail, Deli Drawer	-	Appelez-nous	-
58	68405-10		Glass, Deli	-	Appelez-nous	-
59	Y06100009		Deli Tray	-	Appelez-nous	-
60	65583-80		Insert	-	Appelez-nous	-
61	Y06100010		Pan, Fruit & Vegetable	-	Appelez-nous	-
62	19530-2		Nylon Nut	-	Appelez-nous	-
63	55512-1		Grommet	-	Appelez-nous	-
64	55513-1		Tube	-	Appelez-nous	-
