Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP489478 Screw   (Replaces: 400017-1) - Special Order $ 6.98

1 56125-1 Tube, Feeder - Appelez-nous -
2 56595-3 Valve, Water - Appelez-nous -
3 55603-6 Tubing, Valve To Ice Maker - Appelez-nous -
4 WPB5705307 Tubing, Fountain   (Replaces: 55602-7) - Special Order $ 11.19

5 55604-1 Nut, Compression (5/16``) - Appelez-nous -
6 WP627018 Nut, Compression (1/4``)   (Replaces: 55419-1) - Special Order $ 9.87

7 53760-2 Inlet Tubing Assy. - Appelez-nous -
8 24685-1 Nut, Inlet Tubing - Appelez-nous -
8 24685-5 Washer, Inlet Tubing Nut - Appelez-nous -
9 W10833902 Clamp, Tubing   (Replaces: 53516-8) - Special Order $ 9.89

10 59843-1 Cover, Water Tank - Appelez-nous -
11 62920-1 Tank, Water - Appelez-nous -
12 62082-1 Clip, Water Tank Mounting - Appelez-nous -
13 WPB5705307 Tube   (Replaces: 55602-8) - Special Order $ 11.19

14 WPB5705307 Tube   (Replaces: 55602-4) - Special Order $ 11.19

15 WP627018 Nut, Compression (1/4``)   (Replaces: 55419-1) - Special Order $ 9.87

16 58461-4 Tube, Fill - Appelez-nous -
17 WP59688-1A Tray, Ice   (Replaces: 59688-1) - Special Order $ 18.71

18 62059-1 Plate - Appelez-nous -
18 W11772394 Screw   (Replaces: 400021-1) - In-Stock Immediately $ 10.94

18 RA43714-8 Mechanism, Ice Maker - Appelez-nous -
19 52307-2 Arm, Sensor - Appelez-nous -
20 65319-1 Shaft, Drive - Appelez-nous -
21 58706-1 Ring, Retainer - Appelez-nous -
22 65318-1 Clip, Drive Shaft - Special Order $ 23.83

23 65317-1 Spacer - Appelez-nous -
24 405009-103 Screw - Appelez-nous -
24 53748-1 Spout, Fill - Appelez-nous -
25 66447-1 Bin, Ice - Appelez-nous -
26 66205-1 Ice Disp Front - Appelez-nous -
26 WP1163283 Screw   (Replaces: 405022-103) - Special Order $ 6.47

27 68131-15 Insert, Bin Front - Appelez-nous -
28 63017-1 Ring, Drive - Appelez-nous -
29 WP63052-2 Yoke, Ice Dispenser   (Replaces: 63052-1) - In-Stock Immediately $ 62.02

30 63084-1 Hub, Reinforcing - Appelez-nous -
31 63071-1 Pin, Auger - Appelez-nous -
32 66435-1 Auger - Appelez-nous -
33 66448-1 Impeller, Auger - Appelez-nous -
34 66098-1 Nut, Auger - Appelez-nous -
35 56142-1 Nut, Motor Box - Appelez-nous -
35 65265-1 Box,auger Motor - Appelez-nous -
35 400015-12 Screw - Appelez-nous -
36 WP488234 Screw   (Replaces: 406026-103) - Special Order $ 6.07

36 12001773 Motor, Auger   (Replaces: 65186-1) - Special Order $ 312.61

37 405002-1 Screw - Appelez-nous -
37 RA95059-1 Insulation Kit - Appelez-nous -
37 63000-5 Dispenser, Water - Appelez-nous -
38 64937-1 Heater, Fountain - Appelez-nous -
39 63007-3 Arm,ice - Appelez-nous -
40 55602-21 Tubing, Arm Pins - Appelez-nous -
41 63008-3 Arm, Water - Appelez-nous -
42 63066-1 Pad, Arm - Special Order $ 26.40

43 63035-2 Clip - Appelez-nous -
44 63306-1 Spring - Appelez-nous -
44 402015-103 Screw, Ice Door - Appelez-nous -
45 65212-1 Motor, Inertia - Appelez-nous -
46 RA43825-1 Door Assy., Ice - Appelez-nous -
47 63428-1 Spring, Ice Door - Appelez-nous -
48 63053-1 Pin, Ice Door - Appelez-nous -
49 63014-1 Bracket, Ice Door - Appelez-nous -
50 63089-2 Insulation - Appelez-nous -
50 66007-1 Boot, Ice Door - Appelez-nous -
51 65290-1 Wire Harness - Appelez-nous -
51 68033-1 Wire Harness - Appelez-nous -
51 65291-1 Wire Harness - Appelez-nous -
51 63372-3 Wire Harness - Appelez-nous -
52 63039-1 Socket, Light - Appelez-nous -
53 65176-1 Bushing, Plunger Guide - Appelez-nous -
54 W10857122 Bulb, Light   (Replaces: 63179-1) - Special Order $ 12.45

55 23197-7 Clamp - Appelez-nous -
55 59808-1 Grommet, Water Entry - Appelez-nous -
55 63013-2 Bracket, Switch - Appelez-nous -
55 27116-4 Wire Nut - Appelez-nous -
55 WP67006908 Screw   (Replaces: 400022-1) - In-Stock Immediately $ 7.16

56 65333-1 Insulator, Switch - Appelez-nous -
57 63040-1 Switch, Light - Appelez-nous -
58 55440-2 Switch, Ice & Water - Special Order $ 11.94

59 65002-15 Tubing, Water Line - Appelez-nous -
60 9602-9 Clamp, Tubing - Appelez-nous -
61 W10833902 Clamp, Tubing   (Replaces: 53516-8) - Special Order $ 9.89

62 63038-2 Water Line - Appelez-nous -
63 63036-1 Foil, Barrier Front - Appelez-nous -
64 63025-1 Grill - Appelez-nous -
65 60333-2 Clamp, Spring - Appelez-nous -
65 60333-1 Clamp, Spring - Appelez-nous -
66 ES18809 Switch, Auger Shut Off   (Replaces: 65177-1) - Special Order $ 11.30

67 65185-1 Strike, Auger Box - Appelez-nous -
68 65132-1 Control, Auger Motor - Appelez-nous -
68 405072-1 Screw - Appelez-nous -
69 65143-1 Insulation, Motor Control - Appelez-nous -
70 65285-1 Switch, 2 Circuit - Appelez-nous -
71 406043-1 Screw - Appelez-nous -
71 405022-1 Screw - Appelez-nous -
72 65286-2 Bracket - Appelez-nous -
73 430002-1 Nut - Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

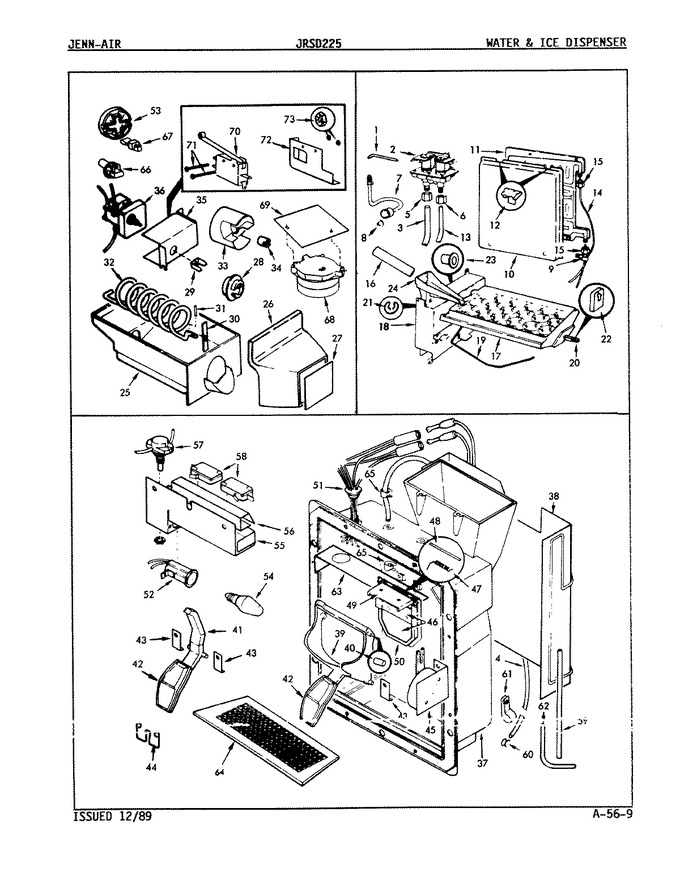

Diagram for JRSD225L (BOM: 9Q20A)
