01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
06 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:

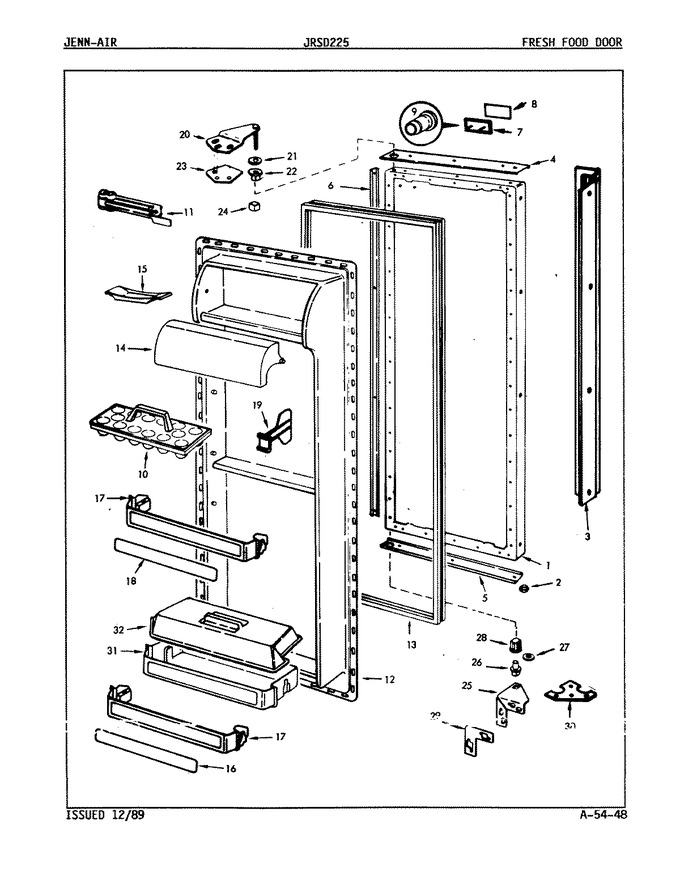

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA95060-1 | Insulation Kit | - |
|
- | ||||
| 1 | 66689-1-AM | Panel, F.f. Door (alm) | - |
|
- | ||||
| 2 | 495034-900 | Plug Button, Door | - |
|
- | ||||
| 3 | 68206-2 | Handle, F.f. Door | - |
|
- | ||||
| 3 | 65275-4 | Screw | - |
|
- | ||||
| 3 | 66799-1 | Achor, Screw | - |
|
- | ||||
| 4 | 68203-1 | Trim, Perimeter Trim (top) | - |
|
- | ||||
| 5 | 68204-1 | Trim, Perimeter Trim (bottom) | - |
|
- | ||||
| 6 | 68205-2 | Trim, Perimeter Trim (side) | - |
|
- | ||||
| 6 | 66799-1 | Achor, Screw | - |
|
- | ||||
| 6 | 65275-15 | Screw | - |
|
- | ||||
| 7 | 68060-1 | Bezel | - |
|
- | ||||
| 8 | 68061-4 | Insert, Nameplate | - |
|
- | ||||
| 9 | 68381-1 | Retainer, Nameplate Bezel | - |
|
- | ||||
| 10 | 60066-13 | Tray, Egg | - |
|
- | ||||
| 11 | 52613-1 | Insulation, Closer | - |
|
- | ||||
| 11 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 11 | 54485-1 | Closer, Door | - |
|
- | ||||
| 11 | 52614-1 | Bracket, Closer | - |
|
- | ||||
| 12 | 9986-12 | Screw,door Liner | - |
|
- | ||||
| 12 | 65641-6 | Liner, F.f. Door | - |
|
- | ||||
| 13 | 53712-2 | Gasket | - |
|
- | ||||
| 14 | 66184-361 | Door, Dairy | - |
|
- | ||||
| 15 | 29936-2 | Tray, Butter | - |
|
- | ||||
| 16 | 68121-43 | Insert, Shelf Door | - |
|
- | ||||
| 17 | 65781-6 | Shelf Front | - |
|
- | ||||
| 18 | 68121-43 | Insert, Shelf Door | - |
|
- | ||||
| 19 | 66645-5 | Shelf, Pick-off | - |
|
- | ||||
| 20 | 53709-22 | Hinge, Upper | - |
|
- | ||||
| 20 | WP3-24838-048 | Screw (Replaces: 9986-87) | - |
|
$ 7.00 | ||||
| 20 | 66875-1 | Cover, Upper Hinge (chrome) | - |
|
- | ||||
| 21 | WP52185-1 | Washer (Replaces: 52185-1) | - |
|
Immediately | $ 9.47 | |||
| 22 | 66036-2 | Bushing, Upper Hinge | - |
|
- | ||||
| 23 | 65031-1 | Shim, Upper Hinge | - |
|
- | ||||
| 24 | 55990-1 | Seal Sleeve | - |
|
- | ||||
| 25 | 60630-12 | Hinge, Lower | - |
|
- | ||||
| 25 | 403062-801 | Screw | - |
|
- | ||||
| 26 | 53672-1 | Pin, Lower Hinge | - |
|
- | ||||
| 27 | 54233-1 | Washer | - |
|
$ 7.71 | ||||
| 28 | 66034-1 | Bushing, Lower Hinge | - |
|
$ 19.76 | ||||
| 29 | 60626-1 | Shim, Lower Hinge | - |
|
- | ||||
| 30 | 65964-1 | Tapping Plate, Lower Hinge | - |
|
- | ||||
| 31 | 65782-6 | Shelf, Pick-off | - |
|
- | ||||
| 32 | 66637-40 | Cover, Pick-off | - |
|
- |
