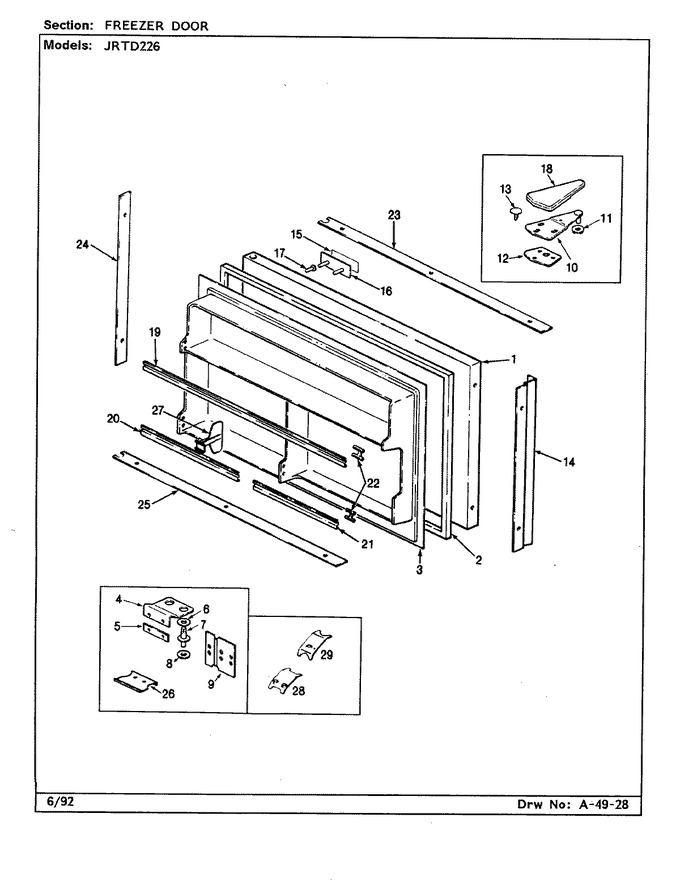

JRTD226L (BOM: BJ84A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72045-23-AM	Panel, Frz. Door (alm)	-	Appelez-nous	-
1	72045-23-WW	Panel, Frz. Door (wht)	-	Appelez-nous	-
2	66199-7	Gasket, Door	-	Appelez-nous	-
3	65275-5	Screw	-	Appelez-nous	-
3	65937-9	Liner, Door	-	Appelez-nous	-
4	65275-55	Screw	-	Appelez-nous	-
4	68811-2	Hinge, Center	-	Appelez-nous	-
5	68812-1	Shim, Center Hinge	-	Appelez-nous	-
6	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	-		Immediately	$ 45.86
7	67322-1	Pin, Center Hinge	-	Appelez-nous	-
8	54233-2	Washer	-	Appelez-nous	-
9	68377-1	Tapping Plate, Center Hinge	-	Appelez-nous	-
10	53709-20	Hinge, Upper	-	Appelez-nous	-
10	WP3-24838-048	Screw (Replaces: 65275-52)	-			$ 7.00
11	54233-1	Washer	-			$ 7.71
12	65031-1	Shim, Upper Hinge	-	Appelez-nous	-
13	56144-9	Plug Button, Hinge Screw (alm)	-	Appelez-nous	-
13	56144-13	Plug Button, Upper Hinge (wht)	-	Appelez-nous	-
14	68667-1	Handle	-	Appelez-nous	-
14	65275-37	Screw, Handle	-	Appelez-nous	-
15	68061-4	Insert, Nameplate	-	Appelez-nous	-
16	68060-1	Bezel	-	Appelez-nous	-
17	29356-1	Retainer, Nameplate	-	Appelez-nous	-
18	65003-6	Cover, Upper Hinge (wht)	-	Appelez-nous	-
18	65003-3	Cover, Upper Hinge (alm)	-	Appelez-nous	-
19	WP61003045	Door, Shelf Trim (Replaces: 68832-16)	-			$ 129.55
20	WP61003045	Door, Shelf Trim (Replaces: 68832-20)	-			$ 129.55
21	WP61003045	Door, Shelf Trim (Replaces: 68832-18)	-			$ 129.55
22	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)	-			$ 9.39
23	68669-6	Perimeter Trim Top	-	Appelez-nous	-
24	68196-2	Trim, Perimeter (side)	-	Appelez-nous	-
25	65275-38	Screw	-	Appelez-nous	-
25	65275-39	Screw	-	Appelez-nous	-
25	68670-2	Trim, Perimeter (bottom)	-	Appelez-nous	-
26	65275-48	Screw	-	Appelez-nous	-
26	68988-3	Stop, Door	-	Appelez-nous	-
27	64097-15	Organizer, Shelf	-	Appelez-nous	-
28	60123-2	Clip, Stop Screw	-	Appelez-nous	-
29	66799-1	Achor, Screw	-	Appelez-nous	-
