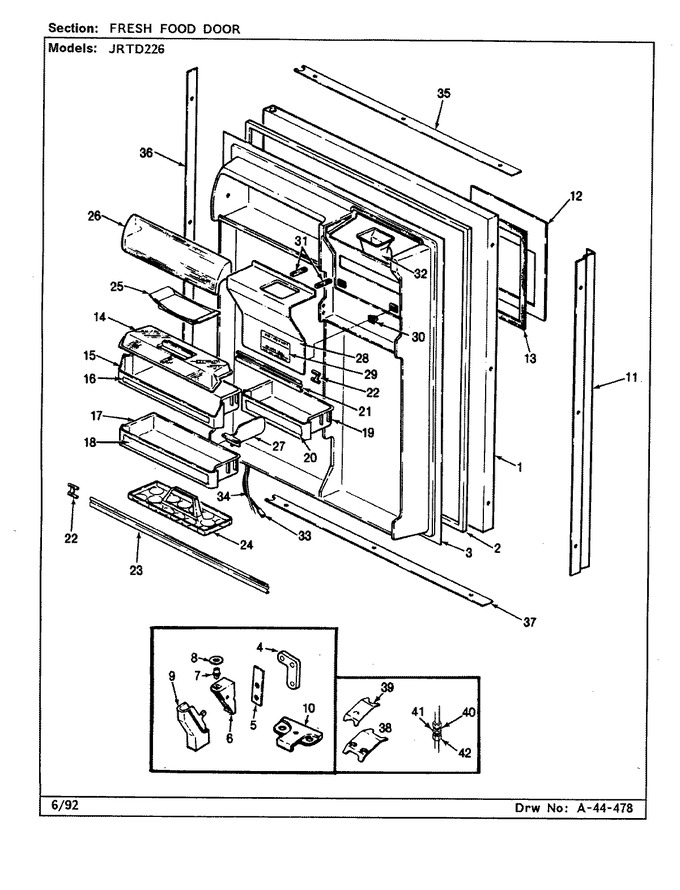

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72049-8-WW | Panel, F.f. Door (wht) | - |
|
- | ||||
| 1 | 72049-8-AM | Panel, F.f. Door (alm) | - |
|
- | ||||
| 2 | 66199-8 | Gasket, Door | - |
|
- | ||||
| 3 | 68677-4 | Liner, F.f. Door | - |
|
- | ||||
| 3 | 65275-5 | Screw | - |
|
- | ||||
| 4 | 67874-1 | Tapping Plate, Lower Hinge | - |
|
- | ||||
| 4 | 65275-59 | Screw | - |
|
- | ||||
| 5 | 69031-1 | Shim | - |
|
- | ||||
| 6 | 65275-51 | Screw, Lower Hinge | - |
|
- | ||||
| 6 | 68975-1 | Hinge, Lower | - |
|
- | ||||
| 7 | 68976-1 | Pin, Lower Hinge | - |
|
- | ||||
| 8 | 67483-3 | Washer, Door Spacer | - |
|
Immediately | $ 45.86 | |||
| 8 | 67483-3 | Washer (Replaces: 67483-5) | - |
|
Immediately | $ 45.86 | |||
| 9 | 68978-1 | Cover, Lower Hinge (blk) | - |
|
- | ||||
| 9 | 65275-47 | Screw, Hinge Cover (black) | - |
|
- | ||||
| 10 | 65275-48 | Screw | - |
|
- | ||||
| 10 | 68988-2 | Stop, Door | - |
|
- | ||||
| 11 | 68666-1 | Handle, F.f. Door | - |
|
- | ||||
| 11 | 65275-37 | Screw, Handle | - |
|
- | ||||
| 12 | 68594-10 | Escutcheon | - |
|
- | ||||
| 13 | 95121-1 | Tape, Escutcheon | - |
|
- | ||||
| 14 | 66515-9 | Cover, Pick-off | - |
|
- | ||||
| 15 | 60037-40 | Door Shelf | - |
|
- | ||||
| 16 | 68130-75 | Insert, Pick-off | - |
|
- | ||||
| 17 | 60037-39 | Door Shelf | - |
|
- | ||||
| 18 | 68130-76 | Insert Pick-off | - |
|
- | ||||
| 19 | 60037-35 | Door Shelf | - |
|
- | ||||
| 20 | 68130-77 | Insert, Pick-off | - |
|
- | ||||
| 21 | WP61003045 | Door, Shelf Trim (Replaces: 68832-19) | - |
|
$ 129.55 | ||||
| 22 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | - |
|
$ 9.39 | ||||
| 23 | WP61003045 | Door, Shelf Trim (Replaces: 68832-17) | - |
|
$ 129.55 | ||||
| 24 | 60066-15 | Tray, Egg | - |
|
- | ||||
| 25 | 29936-2 | Tray, Butter | - |
|
- | ||||
| 26 | 66184-383 | Door, Dairy | - |
|
- | ||||
| 27 | 66645-6 | Organizer Package | - |
|
- | ||||
| 28 | 68700-2 | Access Panel | - |
|
- | ||||
| 29 | 68785-2 | Insert | - |
|
- | ||||
| 30 | 65184-3 | Latch | - |
|
- | ||||
| 31 | 52077-26 | Seal | - |
|
- | ||||
| 32 | 68571-1 | Chute, Ice | - |
|
- | ||||
| 33 | 68536-1 | Wire Harness | - |
|
- | ||||
| 33 | 69145-1 | Wire Harness Door | - |
|
- | ||||
| 34 | WPW10426709 | Tubing Door Fountain (Replaces: 67187-9) | - |
|
$ 126.83 | ||||
| 35 | 68669-6 | Perimeter Trim Top | - |
|
- | ||||
| 36 | 68195-2 | Trim, Perimeter (side) | - |
|
- | ||||
| 37 | 68675-2 | Perimeter Trim Bottom | - |
|
- | ||||
| 37 | 65275-38 | Screw | - |
|
- | ||||
| 37 | 65275-39 | Screw | - |
|
- | ||||
| 37 | 65275-45 | Screw | - |
|
- | ||||
| 38 | 60123-2 | Clip, Stop Screw | - |
|
- | ||||
| 39 | 66799-1 | Achor, Screw | - |
|
- | ||||
| 39 | 60319-4 | Screw, Anchor | - |
|
- | ||||
| 40 | 69583-2 | Nut, Compression (5/16``) | - |
|
- | ||||
| 41 | 67566-1 | Union Reducing | - |
|
- | ||||
| 42 | 53732-2 | U-nut Grounding | - |
|
- | ||||
| 42 | 67610-1 | Nut, Compression (3/8``) | - |
|
- |
