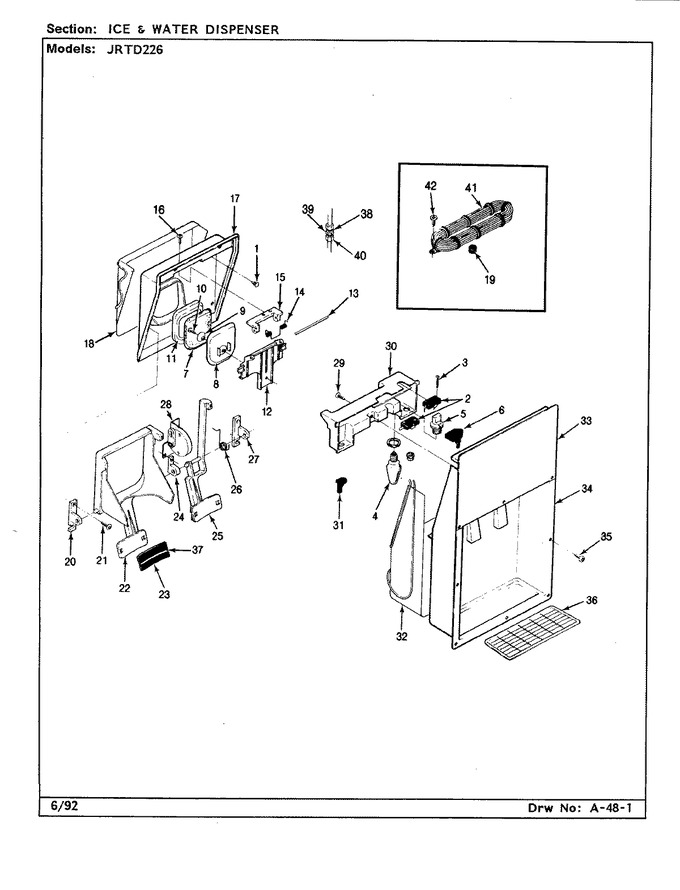

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 28272-6 | Bumper, Door | - |
|
- | ||||
| 2 | 55440-2 | Switch, Ice & Water | - |
|
$ 11.94 | ||||
| 3 | 405071-1 | Screw | - |
|
- | ||||
| 4 | W10857122 | Bulb, Light (Replaces: 63179-1) | - |
|
$ 12.45 | ||||
| 5 | 67293-1 | Socket, Light (w/nut) | - |
|
- | ||||
| 6 | 27116-2 | Wire Nut | - |
|
- | ||||
| 6 | 67340-1 | Switch, Push | - |
|
- | ||||
| 6 | 68491-1 | Wire Harness, Switch | - |
|
- | ||||
| 7 | 68557-1 | Insulation, Ice Door | - |
|
- | ||||
| 8 | 68565-1 | Door, Ice | - |
|
- | ||||
| 9 | 68566-1 | Retainer | - |
|
- | ||||
| 10 | 405023-103 | Screw | - |
|
- | ||||
| 11 | 68560-3 | Seal | - |
|
- | ||||
| 12 | 68563-1 | Strike, Door | - |
|
- | ||||
| 13 | 68564-1 | Shaft | - |
|
- | ||||
| 14 | 68765-1 | Spring | - |
|
- | ||||
| 15 | 68562-1 | Bracket | - |
|
- | ||||
| 16 | 405024-103 | Screw | - |
|
- | ||||
| 17 | WP1163283 | Screw (Replaces: 405025-103) | - |
|
$ 6.47 | ||||
| 17 | 68567-1 | Back, Fountain (blk) | - |
|
- | ||||
| 18 | 68937-1 | Heater, Fountain Back | - |
|
- | ||||
| 19 | 67563-1 | Grommet, Coil Entry | - |
|
- | ||||
| 20 | 68627-1 | Pivot, Actuator (lt) | - |
|
- | ||||
| 21 | 405024-103 | Screw | - |
|
- | ||||
| 22 | 68559-5 | Paddle, Ice | - |
|
- | ||||
| 23 | 68701-1 | Pad, Paddle | - |
|
- | ||||
| 24 | 68764-1 | Pivot, Actuator (center) | - |
|
- | ||||
| 25 | 68558-1 | Paddle, Water (blk) | - |
|
- | ||||
| 26 | 68767-1 | Spring, Paddle Return | - |
|
- | ||||
| 27 | 68628-1 | Pivot, Actuator (rt)---na | - |
|
- | ||||
| 28 | WP1163283 | Screw (Replaces: 405025-103) | - |
|
$ 6.47 | ||||
| 28 | 68827-1 | Motor, Inertia | - |
|
- | ||||
| 29 | WP1163283 | Screw (Replaces: 405025-103) | - |
|
$ 6.47 | ||||
| 30 | 68626-1 | Bracket | - |
|
- | ||||
| 31 | 68568-2 | Plunger | - |
|
- | ||||
| 32 | 68820-1 | Heater Fountain | - |
|
- | ||||
| 33 | 68625-1 | Fountain Front | - |
|
- | ||||
| 34 | 68624-1 | Fountain | - |
|
- | ||||
| 35 | WP1163283 | Screw (Replaces: 405025-103) | - |
|
$ 6.47 | ||||
| 36 | 68631-1 | Grill | - |
|
- | ||||
| 37 | 68763-2 | Trim, Paddle Pad | - |
|
- | ||||
| 38 | 67610-1 | Nut, Compression (3/8``) | - |
|
- | ||||
| 39 | 67566-1 | Union Reducing | - |
|
- | ||||
| 40 | 55604-1 | Nut, Compression (5/16``) | - |
|
- | ||||
| 41 | 68762-1 | Tube, Aluminum | - |
|
- | ||||
| 41 | 68186-4 | Insulation Tubing | - |
|
- | ||||
| 41 | 72028-101 | Coil, Water | - |
|
- | ||||
| 42 | 400027-1 | Screw | - |
|
- | ||||
| 42 | WPW10426709 | Tubing, Valve To Coil (Replaces: 67187-5) | - |
|
$ 126.83 |
