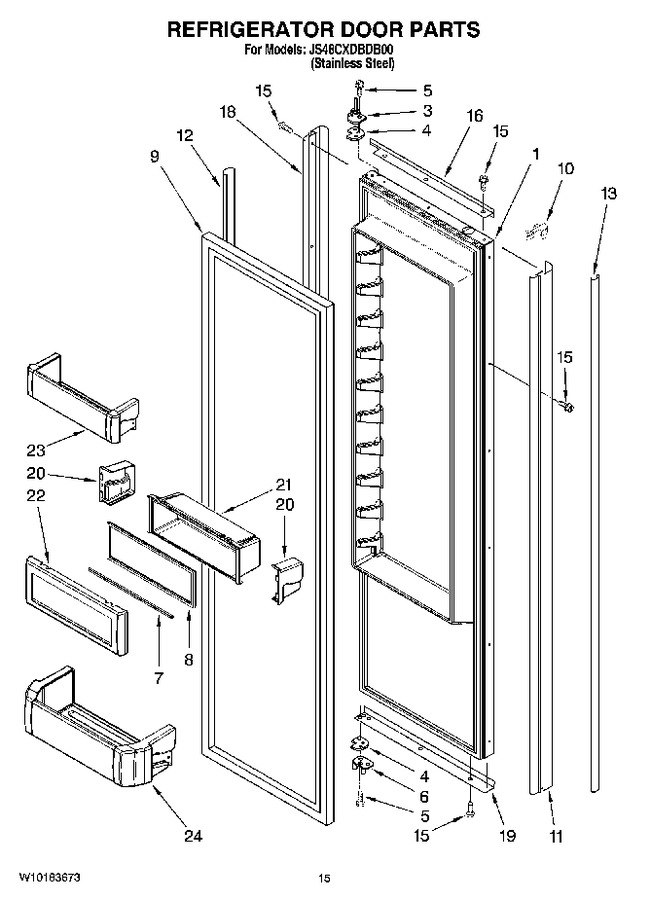

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252331		Refrigerator Door Panel (includes Item 9)				$ 1,681.37
3	2252295B		Hinge Assy, Top (black)		Appelez-nous	-
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 97.26
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.22
6	2252293B		Hinge Assy, Btm (black)		Appelez-nous	-
7	W11348580		Rail, Lid   (Replaces: 2222797)			Immediately	$ 145.92
8	W11348580		Gasket, Utility Bin   (Replaces: 2222983)			Immediately	$ 145.92
9	WP2266903		Door Gasket, Magnetic   (Replaces: 2222812)			Immediately	$ 291.45
10	2006273		Trim, Corner (black)		Appelez-nous	-
11	2309497B		Handle, Door (black)		Appelez-nous	-
12	2259448B		Cover, Trim (hinge Side) (black)		Appelez-nous	-
13	2314003B		Cover, Trim (handle Side) (black)		Appelez-nous	-
15	W10851443		Screw, 8-15 X .500 (black)   (Replaces: 8281252)			Immediately	$ 6.92
16	2309487B		Trim-door, Top (black)		Appelez-nous	-
18	2309498B		Trim-door, Hinge Side (black)		Appelez-nous	-
19	2309493B		Trim-door, Btm (black)		Appelez-nous	-
20	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 7.37
21	W11348580		Bin, Utility Center   (Replaces: 2222923)			Immediately	$ 145.92
22	W11348580		Door, Utility Bin   (Replaces: 2257617)			Immediately	$ 145.92
23	W11752086		Bin, Door (3)   (Replaces: 2222774)				$ 58.45
24	W10323748		Bin, Door   (Replaces: 2222771)				$ 104.38
20A	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 7.37
