SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

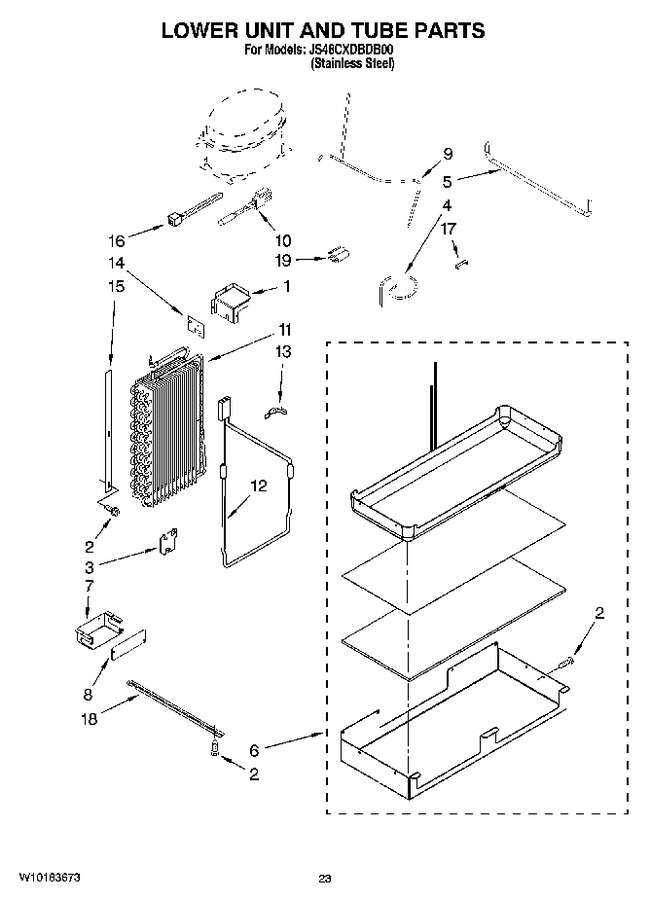

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket Assembly, Air Return		Appelez-nous	-
2	W11624204		Screw   (Replaces: 486194)				$ 12.62
3	W10157752		Bracket, Heater Mounting		Appelez-nous	-
4	2309076		Tube, Suction				$ 136.59
5	W10388653		Tube, Connect (drier/restrictor)   (Replaces: 2309070)			Immediately	$ 34.70
6	W11623101		Drain Pan Assembly   (Replaces: 2320615)			Immediately	$ 337.73
7	W10151288		Cover, Wiring		Appelez-nous	-
8	2316684		Cover, Box		Appelez-nous	-
9	W10121374		Tube, Discharge		Appelez-nous	-
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
11	WP2306094		Evaporator   (Replaces: 2306094)			Immediately	$ 372.51
12	WPW10140162		Heater, Defrost   (Replaces: W10140162)			Immediately	$ 146.50
13	1113048		Clamp, Heater (2)		Appelez-nous	-
14	W10139908		Cover Seal, Evaporator Tubes				$ 11.20
15	2220832		Gasket, Evaporator		Appelez-nous	-
16	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.11
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
19	9791833		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
