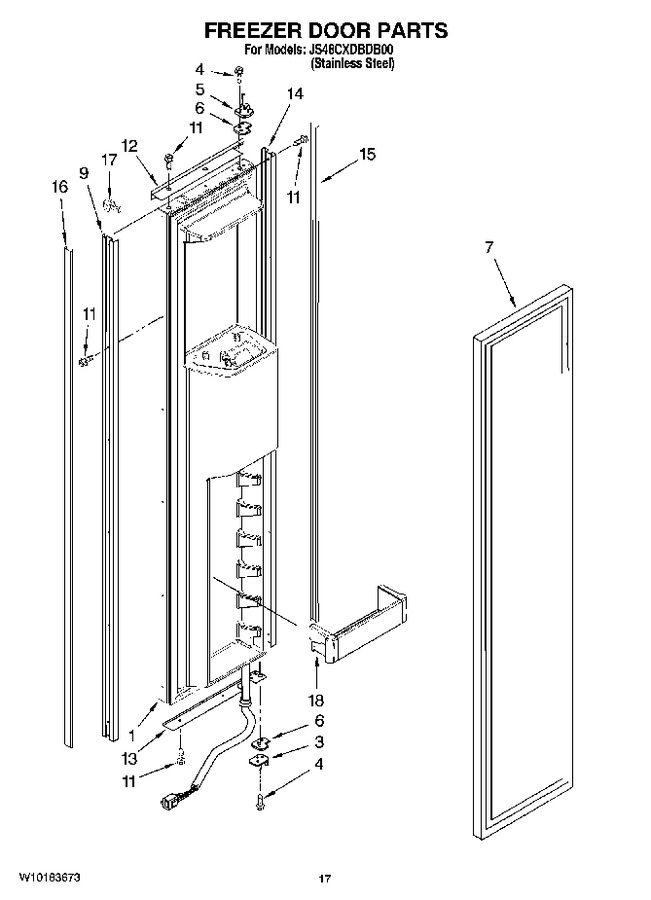

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160329		Freezer Door (includes 7) (black)		Appelez-nous	-
3	2252294B		Hinge, Bottom (black)		Appelez-nous	-
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.22
5	2252295B		Hinge, Top (black)		Appelez-nous	-
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 97.26
7	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 317.01
9	2309497B		Trim-door, (handle Side) (black)		Appelez-nous	-
11	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 6.92
12	2309490B		Trim-door, Top (black)		Appelez-nous	-
13	2309496B		Trim-door, Btm (black)		Appelez-nous	-
14	2309498B		Trim-door, Hinge Side (black)		Appelez-nous	-
15	2259448B		Cover, Trim (hinge Side) (black)		Appelez-nous	-
16	2314003B		Cover, Trim (handle Side) (black)		Appelez-nous	-
17	2006273		Trim, Corner (black)		Appelez-nous	-
18	W11590561		Bin, Door (3)   (Replaces: 2222777)				$ 80.77

    View Diagram in Separate Window       Print Part List
