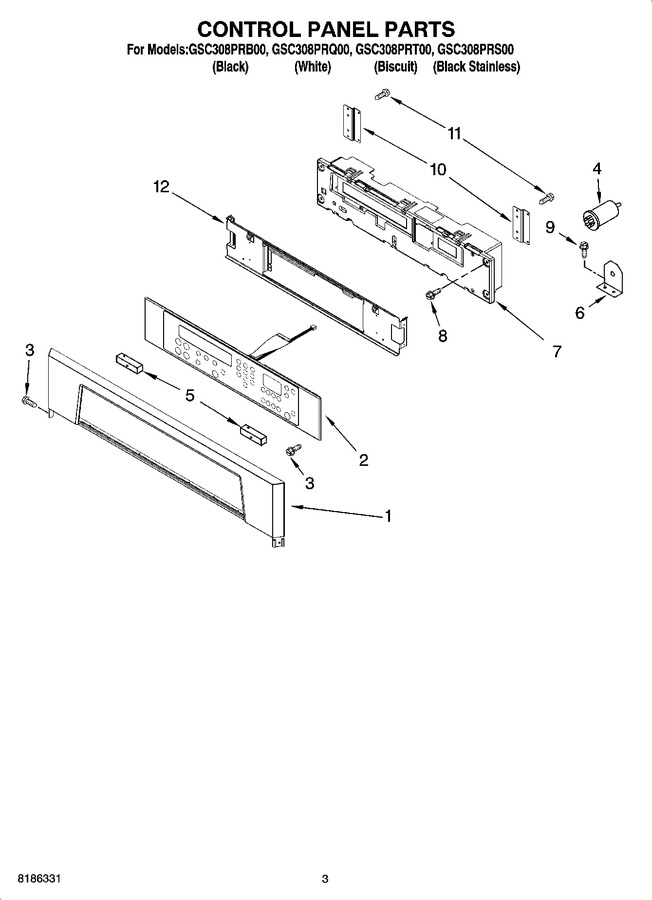

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8302877		Control Panel (stainless Steel)		Appelez-nous	-
1	8302849		Control Panel (white)				$ 117.72
1	8302850		Control Panel (biscuit)				$ 112.28
1	WP8302848		Control Panel (black)   (Replaces: 8302848)				$ 269.84
2	8303232		Assy, Membrane (biscuit)		Appelez-nous	-
2	8303184		Assy, Membrane (black)		Appelez-nous	-
2	8303226		Assy, Membrane (white)		Appelez-nous	-
3	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
4	4451592		Filter				$ 35.89
5	4452260		Spacer, Foam		Appelez-nous	-
6	4451632		Bracket, Filter		Appelez-nous	-
7	8303491		Assy, Control		Appelez-nous	-
8	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
9	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.47
10	8303119		Backer, Control		Appelez-nous	-
11	WP3400832		Screw, 8-18 X 3/8   (Replaces: 3400832)			Immediately	$ 6.98
12	8303114		Backer, Control		Appelez-nous	-
