SELECT A DIAGRAM

Diagram for 01 - Oven Parts
01 - Oven Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Oven Door Parts
03 - Oven Door Parts

Diagram for 04 - Latch Parts
04 - Latch Parts

Diagram for 05 - Internal Oven Parts
05 - Internal Oven Parts

Diagram for 06 - Cabinet And Stirrer Parts
06 - Cabinet And Stirrer Parts

Diagram for 07 - Microwave Compartment Parts
07 - Microwave Compartment Parts

Diagram for 08 - Microwave Door Parts
08 - Microwave Door Parts

Diagram for 09 - Top Venting Parts, Optional Parts
09 - Top Venting Parts, Optional Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10160821 Cover, Fan   (Replaces: 4448988) Special Order $ 244.79

2 WP9760771 Element, Broil   (Replaces: 4456103) In-Stock Immediately $ 104.77

3 WP3195996 Grill, Broiler   (Replaces: 4457277) Special Order $ 82.63

4 WP3196076 Pan, Broiler   (Replaces: 4457276) Special Order $ 279.38

5 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

6 9759322 Pad, Rack Appelez-nous -
6 WPW10179152 Rack, Oven   (Replaces: 4448717) In-Stock Immediately $ 107.65

7 WPW10207397 Element, Bake   (Replaces: 4452153) In-Stock Immediately $ 69.44

8 4452227 Nut Special Order $ 33.98

9 4451583 Convection Motor Special Order $ 140.53

10 4452226 Blade, Fan Special Order $ 30.89

11 3181534 Rack, Roasting Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

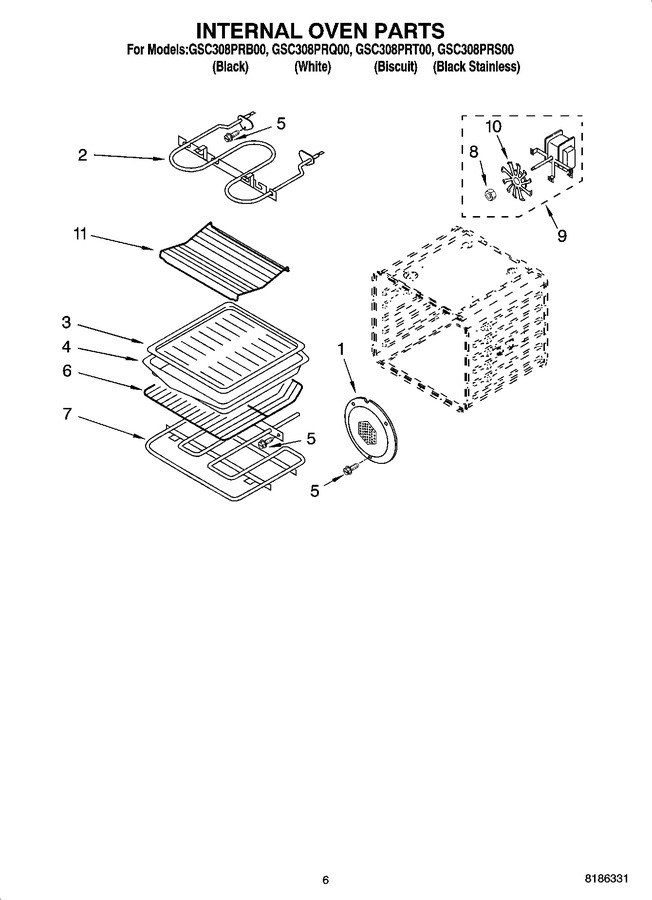

Diagram for GSC308PRQ00
