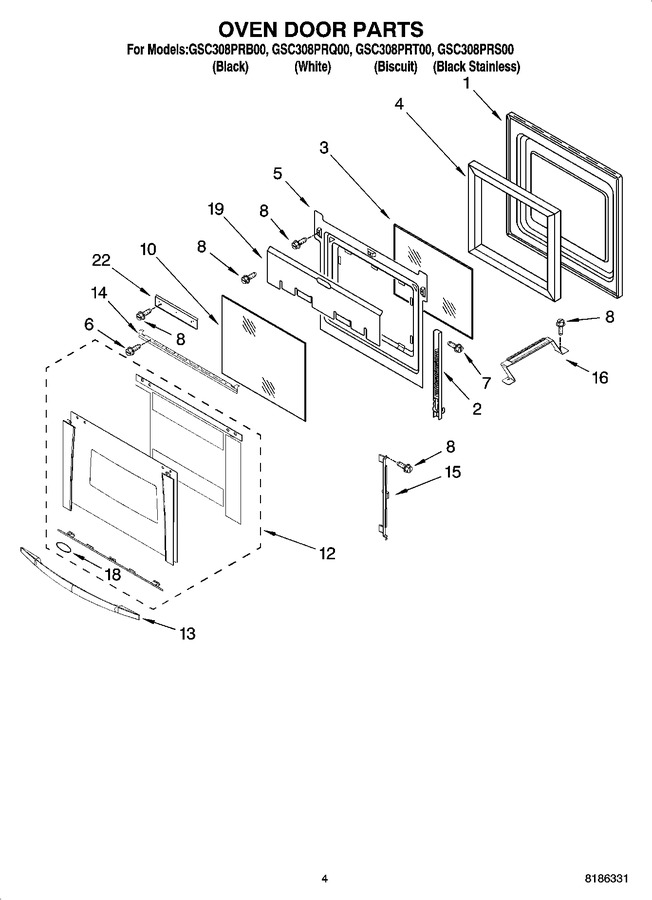

03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 8303700)				$ 317.54
2	WP9760577		Hinge, Door (r.side)   (Replaces: 8300577)			Immediately	$ 99.89
2	WP9760574		Hinge, Door (l.side)   (Replaces: 8300578)			Immediately	$ 60.36
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door And Bottom Door   (Replaces: 4451722)				$ 162.66
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
6	W10276642		Screw, 8-16 X 1/2   (Replaces: 4451040)				$ 5.49
7	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
8	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.47
10	WP9759225		Glass, Inner (2)   (Replaces: 9759225)			Immediately	$ 174.78
12	8303289		Door Glass (stainless Steel)		Appelez-nous	-
12	8303301		Door Glass (black Model)		Appelez-nous	-
12	8303307		Door Glass (white Model)		Appelez-nous	-
12	8303311		Door Glass (biscuit Model)		Appelez-nous	-
13	8302813		Door Handle (black)				$ 76.76
13	8303164		Door Handle (s.steel)		Appelez-nous	-
13	8302815		Door Handle (biscuit)		Appelez-nous	-
13	8302814		Door Handle (white)				$ 96.22
14	8303167		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
16	9759230		Bracket (3rdglass)				$ 36.30
18	8303810		Name Plate		Appelez-nous	-
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 33.62
22	4457114		Shield, Heat-bottom				$ 186.68
