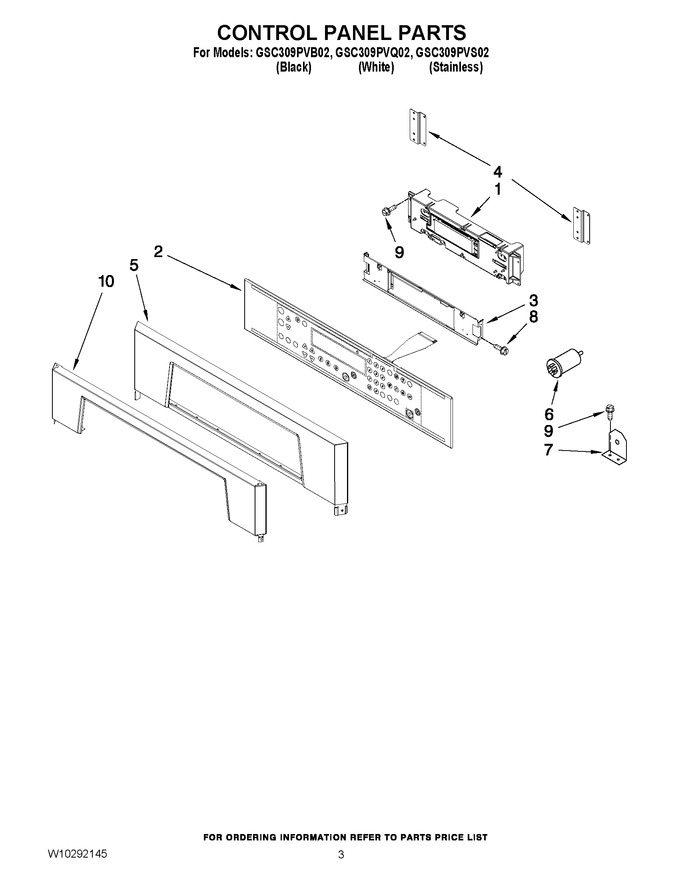

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8301991		Assembly, Control		Appelez-nous	-
2	W10172516		Assembly, Switch (black)		Appelez-nous	-
2	W10172517		Assembly, Switch (white)		Appelez-nous	-
3	W10222959		Backer, Control				$ 53.43
4	8303119		Bracket, Enclosure		Appelez-nous	-
5	8302849		Control Panel (white)				$ 117.72
5	WP8302848		Control Panel (black)   (Replaces: 8302848)				$ 269.84
6	4451592		Filter				$ 35.89
7	4451632		Bracket, Filter		Appelez-nous	-
8	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
10	W10172165		Trim, Control Panel (stainless)				$ 40.47
10	W10172167		Trim, Control Panel (black)		Appelez-nous	-
10	W10172168		Trim, Control Panel (white)				$ 28.46
