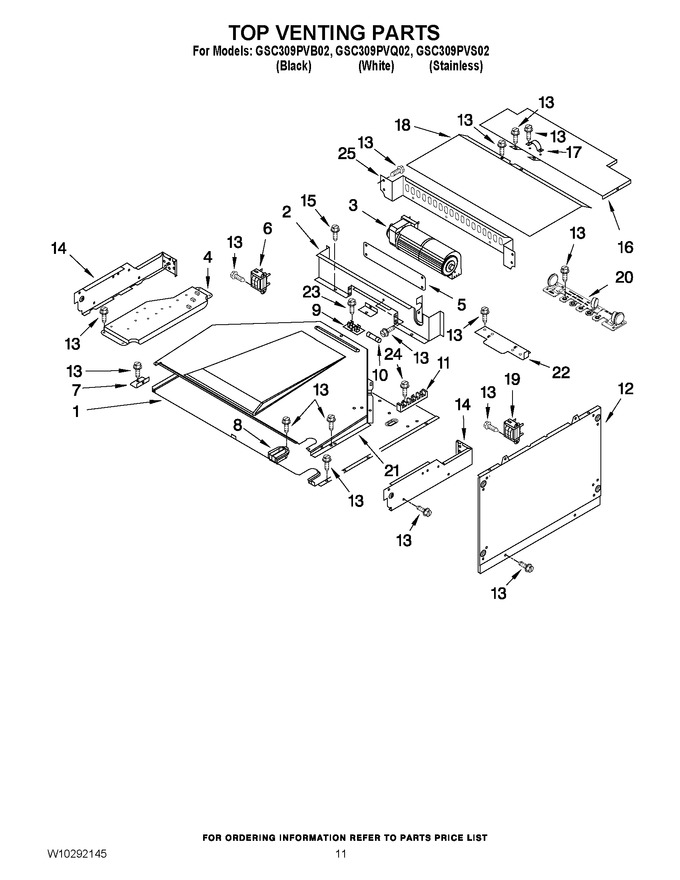

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450378		Cover, Top		Appelez-nous	-
2	4448935		Baffle, Blower		Appelez-nous	-
3	4450920		Blower (1200rpm)		Appelez-nous	-
3	WPW10016550		Blower, 45mm   (Replaces: W10016550)			Immediately	$ 255.27
4	4451789		Plate, Mounting		Appelez-nous	-
5	4452247		Plate, Cover		Appelez-nous	-
6	9760589		Transformer, Control				$ 144.03
7	4450027		Bracket, Duct		Appelez-nous	-
8	4449964		Grommet		Appelez-nous	-
9	4454949		Holder, Fuse				$ 81.63
10	WPW10017410		Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 19.05
11	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 31.65
12	4452559		Side, Combo		Appelez-nous	-
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
14	W10755214		Side, Control Top (right)   (Replaces: 4451597)		Appelez-nous	-
14	W10790240		Side, Control Top (left)   (Replaces: 4451598)				$ 67.21
15	489392		Screw   (Replaces: 1180485)				$ 12.02
16	4450551		Cover, Top Rear		Appelez-nous	-
17	4448664		Clamp				$ 18.35
18	WP4452367		Cover, Top Front   (Replaces: 4452367)				$ 68.53
19	WP9760588		Transformer, 20va Light   (Replaces: 9760588)				$ 237.07
20	4451934		Suppressor				$ 61.73
21	4451634		Duct, Exhaust		Appelez-nous	-
22	4455191		Plate, Service		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
24	W11684512		Screw   (Replaces: 3400080)				$ 12.69
25	W10123223		Cover, Compartment Back				$ 37.49
