Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4451759 Vent, Exhaust Special Order $ 90.01

2 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

3 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

4 4450408 Baffle, Rear Appelez-nous -
5 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

6 WPW10195934 Latch, Motorized   (Replaces: W10195934) In-Stock Immediately $ 259.79

7 4455178 Vent, Top Special Order $ 13.30

8 4455177 Vent, Bottom Special Order $ 9.77


    View Diagram in Separate Window     Print Icon   Print Part List

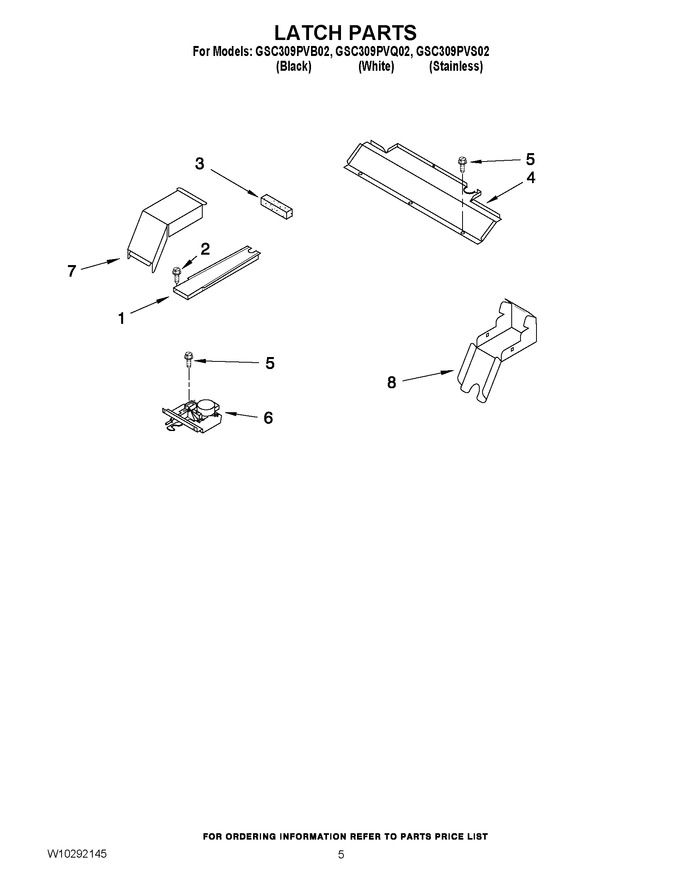

Diagram for GSC309PVB02
