SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Cooktop Burner


04 - Broiler And Oven Burner


05 - Door And Drawer


06 - Oven Chassis


07 - Rear Chassis

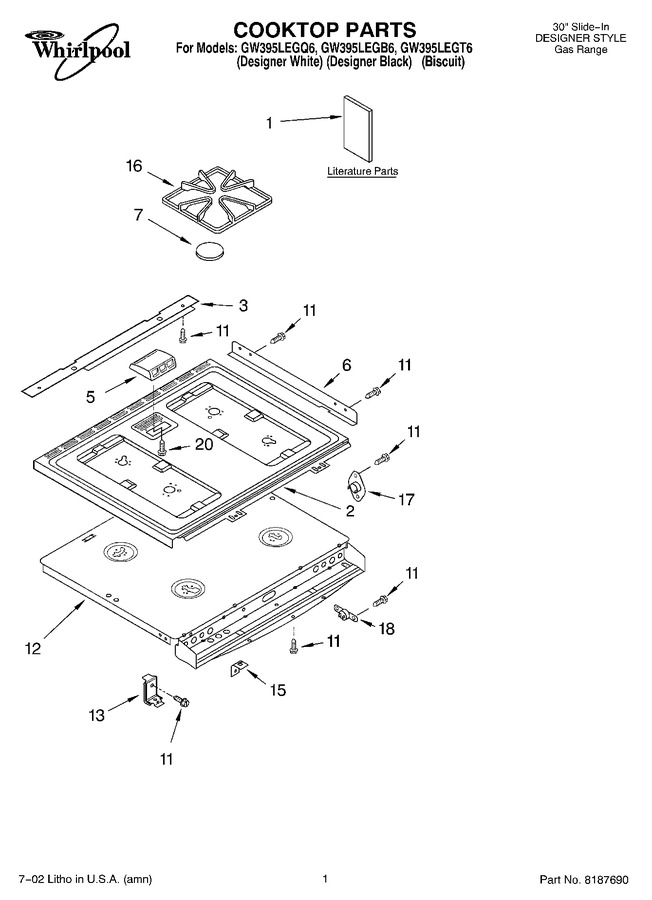

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9753052		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9753051		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9753053		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT9753055		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9753426		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9753502		Literature Parts (instructions (lp Conversion))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT9781877		Literature Parts (service Instr.)		Appelez-nous	-
1	LIT9753268		Literature Parts (back Trim Instr.)		Appelez-nous	-
2	9781890GW		Cooktop, Gas (white)		Appelez-nous	-
2	9781890GB		Cooktop, Gas (black)		Appelez-nous	-
2	9781890GC		Cooktop, Gas (biscuit)		Appelez-nous	-
3	9752889		Trim, Rear		Appelez-nous	-
5	9753772GB		Cap, Vent (black)		Appelez-nous	-
5	9753772GW		Cap, Vent (white)		Appelez-nous	-
6	9752890		Trim, Side		Appelez-nous	-
7	WP3191898		Cap, Burner Large (black)   (Replaces: 3191898)				$ 60.86
7	WP3191904		Cap, Burner Large (black Small)   (Replaces: 3191904)				$ 157.85
7	WP3191905		Cap, Burner Large (grey)   (Replaces: 3191905)				$ 77.99
7	3191899		Cap, Burner Large (grey)				$ 31.21
11	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
12	9752974		Support, Cooktop		Appelez-nous	-
13	9751629		Bracket, Pivot		Appelez-nous	-
15	9782000		Bracket, Rear Angle		Appelez-nous	-
16	WP8053456		Grate, Burner (black)   (Replaces: 8053456)				$ 181.76
16	WPW10447925		Grate, Burner (cumberland Grey)   (Replaces: 8053455)			Immediately	$ 256.76
17	WP9759944		Bimetal, Fan   (Replaces: 9751984)			Immediately	$ 121.57
18	341196		Thermostat, Spst				$ 33.17
20	9781555		Speed Clip		Appelez-nous	-
20	9751644		Screw, 10-24 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
