SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Cooktop Burner


04 - Broiler And Oven Burner


05 - Door And Drawer

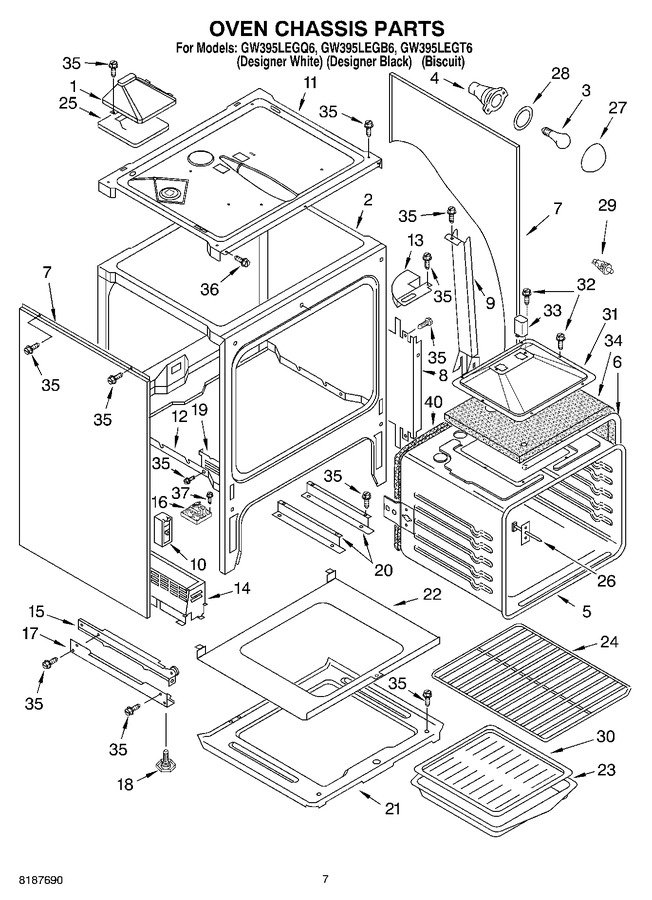

06 - Oven Chassis


07 - Rear Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9753300		Vent, Burner Box		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	40A15		Bulb, Oven   (Replaces: 8935)			Immediately	$ 1.98
4	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 78.31
5	9753011GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9781907PW		Oven, Side L Or R (white)		Appelez-nous	-
7	9781907PB		Oven, Side L Or R (black)		Appelez-nous	-
7	9781907PC		Oven, Side L Or R (biscuit)		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
9	9751789		Fan Duct, Side		Appelez-nous	-
10	WPW10110491		Module, Spark   (Replaces: 8522426)			Immediately	$ 276.35
11	9752975		Burner Box		Appelez-nous	-
12	9752735		Retainer, Insulation		Appelez-nous	-
13	9780265		Screw (2)		Appelez-nous	-
13	9751653		Duct, Top		Appelez-nous	-
14	9751060		Support, Fan		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
15	9750223		Drawer Rail, Left 10 X 3/8		Appelez-nous	-
16	9751020		Motor, Fan				$ 215.07
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Hinge, Receiver		Appelez-nous	-
20	9781904		Support Rail, Pan		Appelez-nous	-
21	9782051		Shield, Drawer		Appelez-nous	-
22	9782050		Plate, Reflectance		Appelez-nous	-
23	4396923		Pan, Broiler   (Replaces: 420101GM)			Immediately	$ 52.04
24	9750498		Rack, Standard (2)		Appelez-nous	-
25	9782385		Insulation, Vent		Appelez-nous	-
26	9782081		Sensor, Oven				$ 119.40
27	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 71.93
28	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 7.73
29	9781580		Door Switch				$ 65.75
30	4396923		Grill, Broiler   (Replaces: 420104GM)			Immediately	$ 52.04
31	9752978		Vent, Burner Box		Appelez-nous	-
32	9751644		Screw, 10-24 X 1/2		Appelez-nous	-
33	9753067		Extension, Vent Box		Appelez-nous	-
34	9754004		Insulation, Wrap		Appelez-nous	-
35	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
36	9780275		Screw, No.8 X 3/8		Appelez-nous	-
37	9751808		Screw, No.8 X 1		Appelez-nous	-
40	9754011		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
