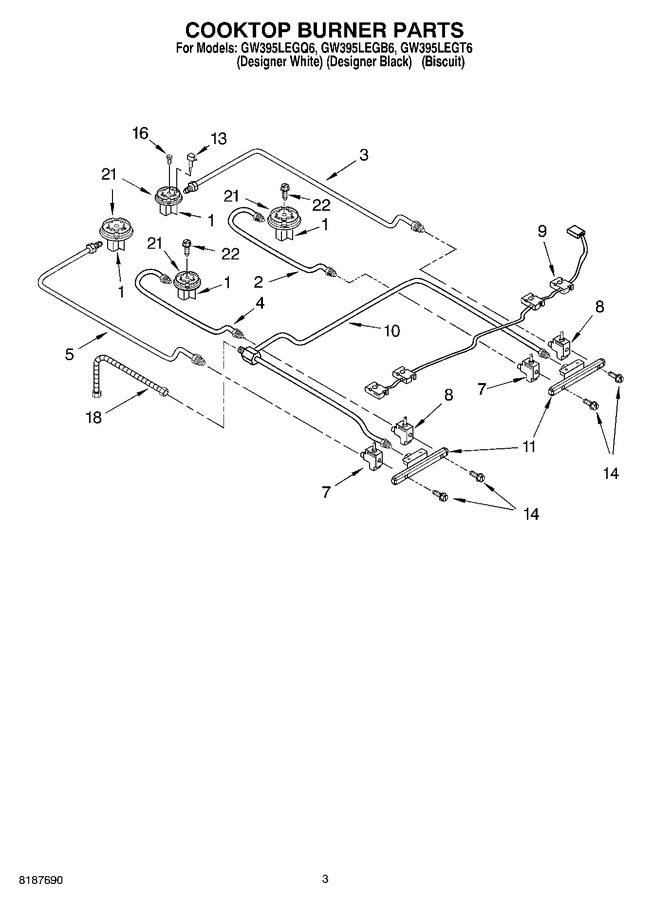

03 - Cooktop Burner


04 - Broiler And Oven Burner


05 - Door And Drawer


06 - Oven Chassis


07 - Rear Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10244714		Burner Base W/orifice (large (2))   (Replaces: 9782448)				$ 104.54
1	9782447		Burner Base W/orifice (small (2))				$ 47.46
2	9753005		Tubing, Burner (rf)		Appelez-nous	-
3	9753006		Tubing, Burner (rr)		Appelez-nous	-
4	9753003		Tubing, Burner (lf)		Appelez-nous	-
5	9753004		Tubing, Burner (lr)		Appelez-nous	-
7	9755345		Valve, Burner Small (2)		Appelez-nous	-
8	9755344		Valve, Burner Large (2)		Appelez-nous	-
9	WP9755451		Spark Switch & Harness Assembly   (Replaces: 9755451)			Immediately	$ 172.13
10	9754148		Tube, Manifold		Appelez-nous	-
11	9782470		Manifold (left Hand)		Appelez-nous	-
11	9782471		Manifold (right Hand)		Appelez-nous	-
13	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
14	8523704		Bolt, Valve (4)		Appelez-nous	-
16	WP9753929		Orifice, Burner (large Base, 12k)   (Replaces: 9753929)				$ 72.63
16	9753928		Orifice, Burner (small Base, 6k)				$ 38.86
18	9751854		Tubing, Flex		Appelez-nous	-
21	4455979		Head, Burner (small)				$ 28.52
21	WP4455981		Head, Burner (large)   (Replaces: 4455981)			Immediately	$ 78.77
22	WPW10067840		Screw, 8-18 X 5/8   (Replaces: 8281147)				$ 6.98
