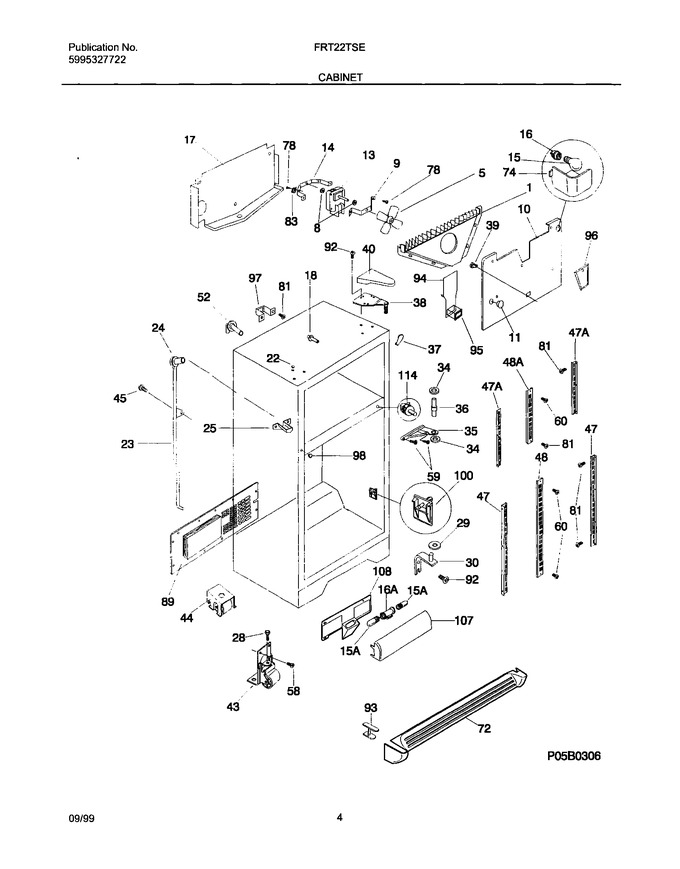

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5304402185		Cover-evap Coil		Appelez-nous	-
11	5303208309		Button Plug-short Test Hole (non-illustrated)				$ 45.50
13	215474201		Washer, ``slinger``, Nylon, Evap Fan Shaf (non-illustrated)			Immediately	$ 18.43
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	215812200		Light Bulb/lamp,25w				$ 16.54
16	5308000129		Light Bulb				$ 62.16
17	5303292408		Trough-drain		Appelez-nous	-
18	215245000		Base-cabinet				$ 25.20
22	215774918		Plug-button, Black, Upr Hinge Holes				$ 9.86
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5303292412		Spout-drain Tube				$ 13.81
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215314300		Washer, .060, Nylon		Appelez-nous	-
29	215003200		Washer, .160, Nylon				$ 54.86
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	218730700		Tapping Plate, Lh (not Illustrated)				$ 28.08
30	5303289060		Bracket-lower Hinge, W/hinge Pin		Appelez-nous	-
30	218730800		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
34	218737000		Washer-ctr Hinge Pin				$ 1.37
35	218780003		Bracket-ctr Hinge,black		Appelez-nous	-
36	215095900		Pin-center Hinge				$ 19.58
37	5303321083		Trim-cabinet Corner, Black				$ 9.92
38	218215216		Bracket-upper Hinge, With Closer, Black		Appelez-nous	-
38	5304403492		Tapping Plate,upper Hinge ,(2)		Appelez-nous	-
39	08006983		Spacer-divider		Appelez-nous	-
40	5303323268		Cover-upper Hinge,black				$ 50.35
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
43	5308017044		Screw - Roller Adj Mounting (2)				$ 6.34
44	218738300		Roller Assy, Rear, (2)				$ 51.98
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
45	218754500		Screw,hex Hd Ser Wshr ,8-18 X 3/8 ,wiring Cover,drain Tube		Appelez-nous	-
47	218233300		Channel-shelf Mtg, Side				$ 86.05
48	218877701		Channel-shelf Mtg,center		Appelez-nous	-
52	215454600		Tube-water Inlet				$ 81.11
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
60	218362501		Screw, Hex Head, 8-18ab X 1-1/4   (Replaces: 218362500)				$ 12.05
72	218359612		Grille/kickplate, Black		Appelez-nous	-
72	218515401		Clip				$ 17.72
74	215423500		Shield-light, Frzr		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket				$ 33.23
89	5303288947		Cover-machine Compt		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
93	218362603		Plug-grille, Black				$ 5.77
94	218044800		Seal-air Duct Cover (non-illustrated)		Appelez-nous	-
94	5303319993		Cover-air Duct		Appelez-nous	-
95	218663101		Gasket-air Duct Cvr		Appelez-nous	-
96	215775901		Cover-fan Access				$ 22.85
97	5303289299		Bracket-im Plug		Appelez-nous	-
98	215099718		Plug-button, Black, Ctr Hinge Hole		Appelez-nous	-
100	5303288973		Support-crisper Cvr				$ 24.41
107	218835902		Shield-light,crisper				$ 65.07
108	218834202		Cover-wiring				$ 56.05
15A	218708700		Light Bulb/lamp, Crisper Light, (2)				$ 50.78
16A	5303299157		Socket-light/lamp, Crisper Light				$ 63.63
47A	215209100		Channel-shelf Mtg, Side, Frzr		Appelez-nous	-
48A	215209200		Channel-shelf Mtg, Center Frzr		Appelez-nous	-
F114	5303299156		Switch-light/lamp, Black				$ 45.10
F13	5300158289		Motor-evap Fan   (Replaces: 218661700)			Immediately	$ 149.94
F5	5303292398		Fan Blade				$ 50.35
NI	5308016571		Butter Plug Liner				$ 4.79
NI	5303001361		Pin, Push, (2)		Appelez-nous	-
