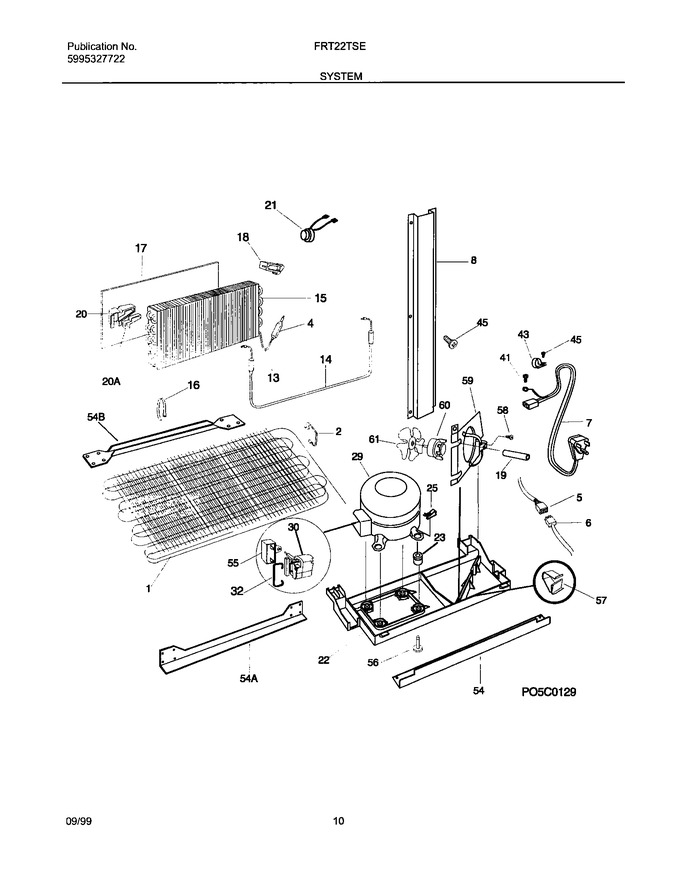

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289026		Spacer Tube		Appelez-nous	-
1	5303208866		Spacer-tube (3) (non-illustrated)				$ 1.94
2	5303289029		Clip-cond Mtg. (4)		Appelez-nous	-
5	218463600		Harness-wiring, Cripser Lights (not Illustrated)		Appelez-nous	-
5	218671800		Harness-wiring, Main		Appelez-nous	-
6	215633901		Harness-wiring, Machine Compt		Appelez-nous	-
7	215459201		Cord-electric Power				$ 66.47
8	218803400		Cover-wiring				$ 79.11
16	5308000110		Stra-evap/heater, Aluminum			Immediately	$ 59.82
17	5316651102		Instualtor-evap, Plastic				$ 53.04
18	5303292407		Insulation Block, Rh		Appelez-nous	-
19	218631200		Tube, Rubber		Appelez-nous	-
20	5303292406		Insulation Block,lh		Appelez-nous	-
22	218811100		Base-compressor Mtg, (drain Pan)		Appelez-nous	-
23	218513300		Grommet Compr (4)				$ 42.53
25	215014200		Clip-compressor Mtg		Appelez-nous	-
32	218740800		Clamp,elec Cont Mtg ,compressor				$ 65.21
41	5308000039		Screw		Appelez-nous	-
43	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
43	215174700		Clamp, Service Cord, Strain Relief		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
45	218754500		Screw,hex Hd Ser Wshr ,8-18 X 3/8 ,wiring Cover,drain Tube		Appelez-nous	-
45	5300141713		Screw-capacitor (non-illustrated)		Appelez-nous	-
45	5303210353		Screw		Appelez-nous	-
45	218769200		Screw, Hx Wshr Hd Spec, 6-32 X .5 (not Illustrated)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
54	5303289027		Rail-cabinet Base,rear		Appelez-nous	-
55	218897001		Screw,hex Washer Head ,8-32 X 1/4				$ 4.40
56	215014100		Pin-compressor Mtg,(4)		Appelez-nous	-
57	218247300		Clip-wiring Harness		Appelez-nous	-
58	215004600		Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2)		Appelez-nous	-
59	215226700		Seal-foam, Cond Fan Shroud (non-illustrated)		Appelez-nous	-
59	5303289031		Shroud-cond Fan Mtr		Appelez-nous	-
60	5304455852		Scerw, 8-15(a) X 1, Hex Washer Head   (Replaces: 5303207328)				$ 12.76
61	215004800		Grommet-silencer (non-illustrated)				$ 52.50
61	5303289032		Blade-cond Fan		Appelez-nous	-
61	215004700		Nut,speed				$ 3.78
20A	5303292405		Insulation Plug,lh		Appelez-nous	-
54A	5303289311		Rail-compr Support		Appelez-nous	-
54B	5303289292		Rail-cabinet Base, Front		Appelez-nous	-
F1	218787700		Condenser		Appelez-nous	-
F13	218168602		Heat Exchanger, Suction Line				$ 181.07
F14	5317842502		Heater-defrost				$ 133.96
F15	5303321220		Evaporator				$ 313.48
F21	5303917954		Defrost-thermostat   (Replaces: 5316269001)			Immediately	$ 30.47
F29	5304478809		Compressor,r134a ,w/o Electricals   (Replaces: 218374515)			Immediately	$ 584.96
F30	218721101		Starter/overload Assy				$ 102.87
F4	5303305677		Drier-filter   (Replaces: 218541000)			Immediately	$ 31.67
F55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
F60	215501901		Motor-condenser Fan				$ 202.70
NI	5303917214		Hot Tube Repair Kit, Service				$ 393.07
