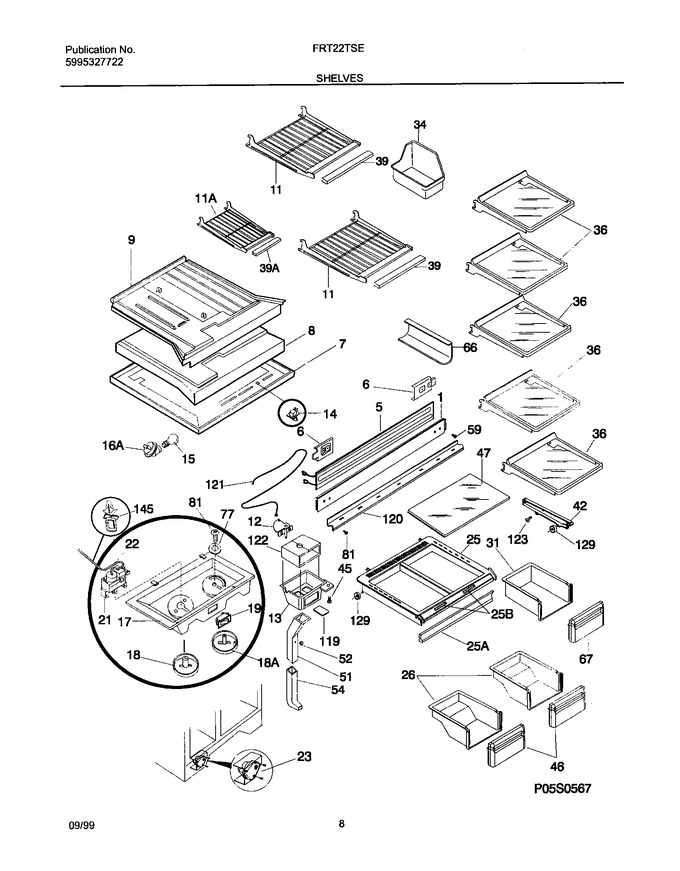

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
119	215132700		Cap, Air Duct				$ 18.38
120	218019201		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
121	215209400		Nut, Push, On, Damper Cable (not Illustrated)		Appelez-nous	-
122	218561202		Block-air Deflector, Rh		Appelez-nous	-
122	218561204		Block-air Deflector, Lh		Appelez-nous	-
123	215005101		Rail-auger Bucket, Lh   (Replaces: 215005100)				$ 14.89
129	5303299152		Roller-hanger				$ 12.34
129	5303299153		Bearing-roller (non-illustrated)				$ 5.09
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
NI	215339100		Seal-divider Throat		Appelez-nous	-
NI	215339900		Clip, Cantilevr Shlf				$ 5.83
NI	215359900		Seal-divider Front		Appelez-nous	-
NI	215848000		Spacer-air Channel		Appelez-nous	-
