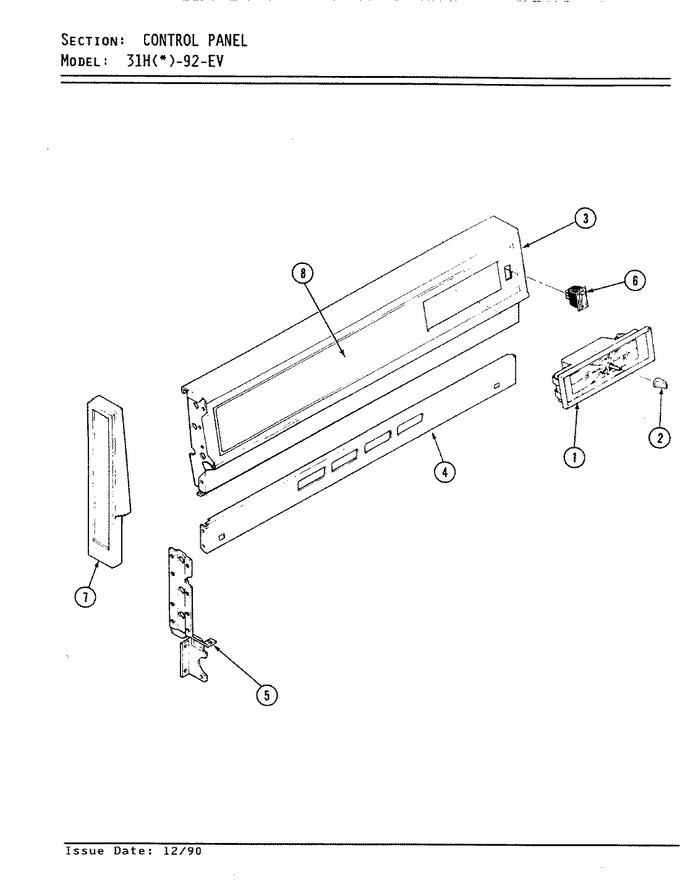

01 - Control Panel
02 - Door/drawer
03 - Gas Controls
04 - Top Assembly/body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F034-80 | Cover, Bottom | 01 |
|
- | ||||
| 1 | 7602P102-60 | Clock | 01 |
|
- | ||||
| 1 | 4005F071-80 | Cover, Bkgd. Wire | 01 |
|
- | ||||
| 1 | 7902P108-60 | Glass, Clock | 01 |
|
- | ||||
| 2 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 2 | 7711P419-60 | Knob, Clock (wht) | 01 |
|
- | ||||
| 3 | 2601W282-81 | Bkgd Assy, White | 01 |
|
- | ||||
| 4 | 2620W053-19 | Panel, Backguard (lower) | 60 |
|
- | ||||
| 4 | 2620W053-23 | Panel, Lower Bkgd. (blk) | 01 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 5 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 5 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 6 | 7403P200-60 | Switch, Rocker (wht) | 01 |
|
- | ||||
| 7 | 7726P010-60 | End Cap, Backguard (lt-chr) | 01 |
|
- | ||||
| 7 | 7726P021-60 | End Cap, Backguard (rt-chr) | 01 |
|
- | ||||
| 7 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 8 | 7703P246-60 | Trim, Backguard Insert | 01 |
|
- |
