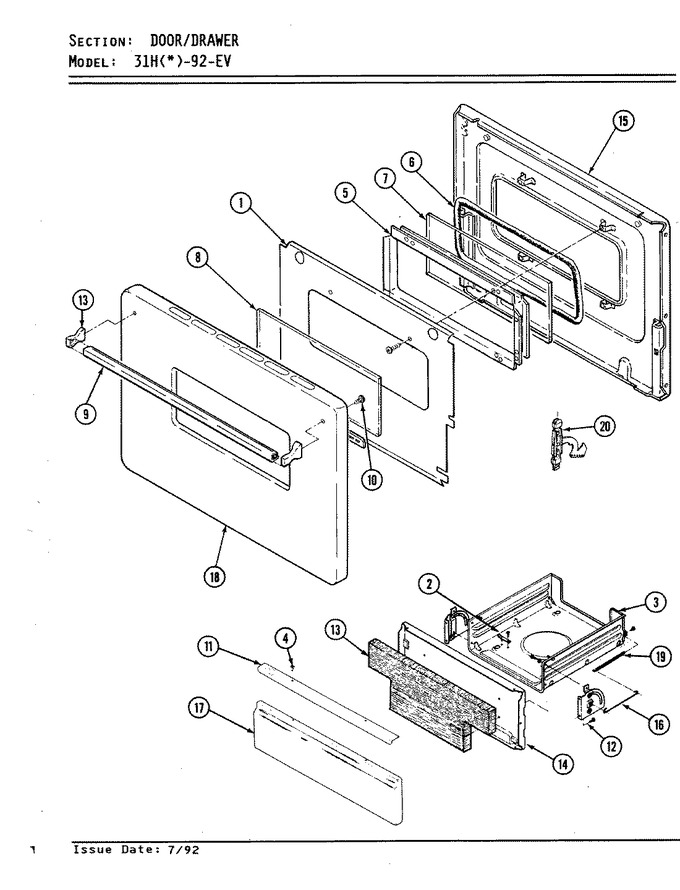

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F094-51		Baffle, Oven Door	01	Appelez-nous	-
2	7103P067-60		Lock Nut, Catch	01	Appelez-nous	-
2	WP74004005		Screw   (Replaces: 7101P076-60)	01			$ 6.95
2	8002P001-60		Catch	01	Appelez-nous	-
3	3407W009-19		Broiler Drawer Assy.	60	Appelez-nous	-
3	3407W009-23		Drawer, Broiler	01	Appelez-nous	-
4	74002481		Screw, Handle   (Replaces: 7101P283-60)	01			$ 5.82
5	3603F013-80		Frame, Window----na	01	Appelez-nous	-
6	7201P017-60		Gasket, Window	01			$ 52.69
7	7902P035-60		Glass, Door Inner	01	Appelez-nous	-
8	7902P326-60		Glass, Door (outer)	01	Appelez-nous	-
9	2411F003-71		Handle, Door (wht)	01	Appelez-nous	-
10	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	01		Immediately	$ 7.69
11	2411F003-71		Handle, Door (wht)	01	Appelez-nous	-
12	3418A062-34		Hinge, Broiler (rt)	01	Appelez-nous	-
12	3418A063-34		Hinge, Broiler (lt)	01	Appelez-nous	-
13	7002P002-60		Insulation	01	Appelez-nous	-
13	7002P012-60		Insulation, Door	01	Appelez-nous	-
14	2404F021-19		Lining, Broiler Drawer	60	Appelez-nous	-
14	2404F021-23		Lining, Broiler	01	Appelez-nous	-
15	2402W154-19		Lining, Oven Door	60	Appelez-nous	-
15	2402W154-23		Lining, Door	01	Appelez-nous	-
16	7807P001-60		Link, Broiler	01	Appelez-nous	-
17	2416F025-71		Panel, Drawer (wht)	01	Appelez-nous	-
18	2401F042-71		Panel, Door (wht)	01	Appelez-nous	-
18	8010P002-60		Spacer, Handle	01	Appelez-nous	-
19	WP7803P058-60		Spring, Oven Door   (Replaces: 7803P058-60)	01			$ 16.55
19	7803P014-60		Spring	01	Appelez-nous	-
20	3418A029-34		Hinge Assy. (lt)	01			$ 48.47
20	3418A030-34		Hinge Assy. (rt)	01	Appelez-nous	-
