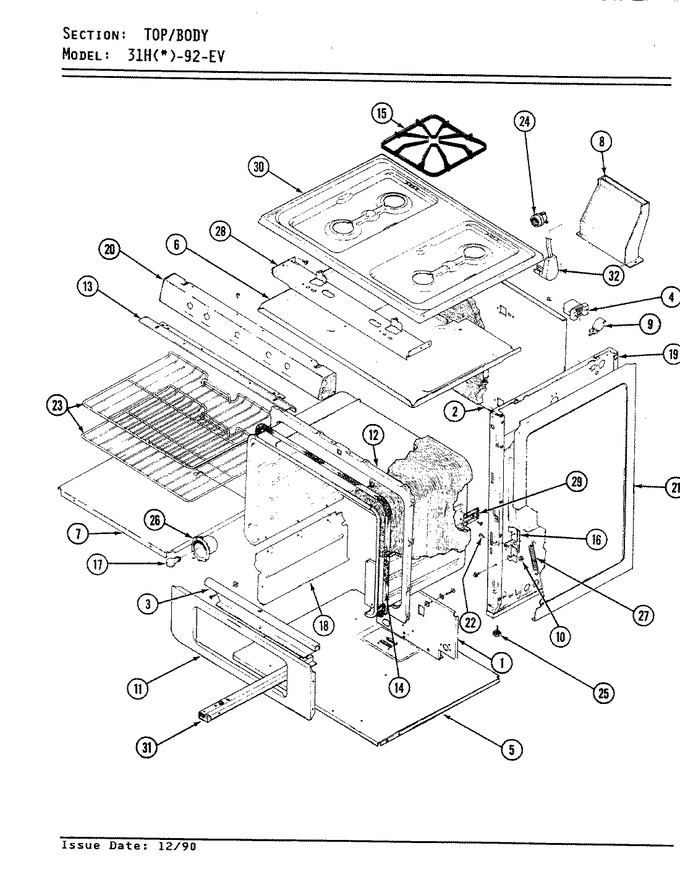

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F124-45 | Back, Broiler | 01 |
|
- | ||||
| 2 | 4002F144-80 | Back, Main | 01 |
|
- | ||||
| 3 | 3601W124-23 | Baffle, Oven Frt | 01 |
|
- | ||||
| 4 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 4 | 7401P006-60 | Block, Disconnect | 01 |
|
- | ||||
| 4 | 7401P018-60 | Block | 01 |
|
- | ||||
| 5 | 4011F161-80 | Bottom, Broiler | 01 |
|
- | ||||
| 6 | 4011F095-80 | Bottom, Burner Box | 01 |
|
- | ||||
| 7 | 2205F020-21 | Bottom, Oven | 60 |
|
- | ||||
| 7 | 1430283 | Bowl, Drip (chr) (Replaces: 7725P020-60) | 01 |
|
$ 95.86 | ||||
| 7 | 2205F012-23 | Bottom, Oven | 01 |
|
- | ||||
| 8 | 3801F021-45 | Bracket | 01 |
|
- | ||||
| 8 | 4006W026-80 | Box, Flue | 01 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 9 | 8007P003-60 | Bushing, Snap | 01 |
|
- | ||||
| 9 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 59 |
|
Immediately | $ 4.69 | |||
| 9 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 59 |
|
$ 26.33 | ||||
| 9 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 9 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 9 | 3801F198-51 | Bracket, Tie-down | 01 |
|
- | ||||
| 10 | 7402P014-60 | Cord, Power | 01 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 10 | 4005F034-80 | Cover, Bottom | 01 |
|
- | ||||
| 10 | 7112P073-60 | Clip, Top Retainer | 01 |
|
- | ||||
| 10 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 11 | 2201F034-25 | Front, Frame Oven Lower | 01 |
|
- | ||||
| 12 | W10124350 | Not Required Part Or See Note Frame, Upper (not Replaceable) | 01 |
|
- | ||||
| 13 | 4012F021-80 | Front, Burner Box | 01 |
|
- | ||||
| 14 | 7212P001-60 | Seal | 01 |
|
- | ||||
| 15 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 15 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 15 | 2003W001-00 | Grate | 01 |
|
- | ||||
| 15 | 2003W026-00 | Grate (blk) | 61 |
|
- | ||||
| 16 | 7731P044-60 | Knob, Thermostat | 01 |
|
- | ||||
| 16 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 16 | 7733P046-60 | Knob, Valve (wht) | 01 |
|
- | ||||
| 17 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 18 | 4009F045-45 | Lining, Broiler Side | 01 |
|
- | ||||
| 19 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 01 |
|
Immediately | $ 52.04 | |||
| 19 | 3413F002-23 | Insert, Broil Pan | 01 |
|
- | ||||
| 19 | 4009W040-80 | Lining, Inner Side | 01 |
|
- | ||||
| 19 | 4009W077-80 | Lining, Assy Inner Side | 59 |
|
- | ||||
| 20 | 7712P113-60 | Panel, Manifold (white) | 01 |
|
- | ||||
| 21 | 2618F073-71 | Panel, Side (wht)----na | 01 |
|
- | ||||
| 22 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 23 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 24 | 3804F010-50 | Retainer | 01 |
|
- | ||||
| 24 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 25 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 26 | 4001F016-23 | Housing, Lamp | 01 |
|
- | ||||
| 26 | 4001F016-19 | Housing, Lamp | 60 |
|
- | ||||
| 27 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 01 |
|
$ 16.55 | ||||
| 28 | 3807F347-51 | Support, Top Burner | 01 |
|
- | ||||
| 29 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 30 | 2001F035-81 | Top, Main | 01 |
|
- | ||||
| 31 | 3404A013-51 | Track, Broiler Dwr Right | 01 |
|
- | ||||
| 31 | 3404A014-51 | Track, Broiler Dwr Left | 01 |
|
- | ||||
| 32 | 7402P014-60 | Cord, Power | 01 |
|
- | ||||
| 33 | 7401P013-60 | Block, Disconnect | 01 |
|
- |
