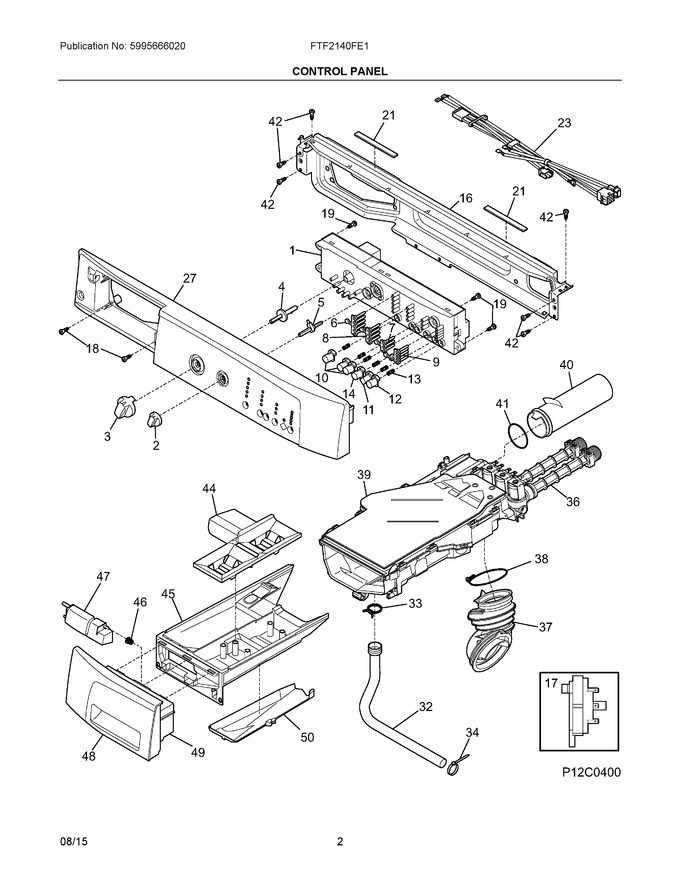

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137005000NH		Control Board, Pc, With Housing   (Replaces: 137005000)			Immediately	$ 228.54
2	134432060		Knob, Function		Appelez-nous	-
3	134431960		Knob, Program		Appelez-nous	-
4	134347700		Pin, Program Knob				$ 19.74
5	134347300		Pin, Function Knob				$ 11.60
6	134429100		Light Pipe, Array, 1 Row Of 5				$ 130.57
7	134429300		Light Pipe, Array, 3 Row Of 3				$ 11.34
8	134429200		Light Pipe, Array, 2 Row Of 4				$ 12.97
9	134429400		Light Pipe, Array, 4 Start Group				$ 13.39
10	134385160		Push Button, Function		Appelez-nous	-
11	134385201		Push Button, Start				$ 13.70
12	134385301		Push Button, Pause				$ 32.97
13	134349400		Spring, Push Button				$ 9.14
14	134385460		Push Button, Soil		Appelez-nous	-
16	134364800		Bracket, Top Front				$ 70.98
17	134844501		Switch, Pressure				$ 60.96
18	131302800		Screw, 10-16ab X 0.375			Immediately	$ 26.58
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
21	134407900		Dampener, Vibration				$ 17.01
23	134435300		Wiring Harness, Controls				$ 66.94
27	134442660		Panel, Control Console, Black		Appelez-nous	-
32	134586500		Hose, Disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie, 5.60 Inch   (Replaces: 5303321209)				$ 10.63
36	134866600		Valve, Dispenser, Non Ntc			Immediately	$ 147.47
37	134372300		Hose, Disp-to-tub				$ 58.32
38	134372400		Clamp, Tub Hose				$ 64.49
39	134446150		Housing, Dispenser, Valve, Cover		Appelez-nous	-
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 13.74
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
44	134370200		Cover, Dispenser			Immediately	$ 41.11
45	134370000		Drawer, Dispenser			Immediately	$ 74.11
46	134349500		Spring, Door Latch				$ 7.71
47	134386560		Latch, Dispenser, Black, Lock				$ 43.89
48	134453360		Handle, Dispenser, Front		Appelez-nous	-
49	134386260		Frame, Drawer Handle, Black				$ 50.19
50	134409320		Conveyor, Dispenser, Lower   (Replaces: 134370100)			Immediately	$ 366.58
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
NIA	134178901		Screw, Quadrex Ph, 8-18ab X 0.500   (Replaces: 131311900)				$ 14.89
NIA	134743300		Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
