SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top

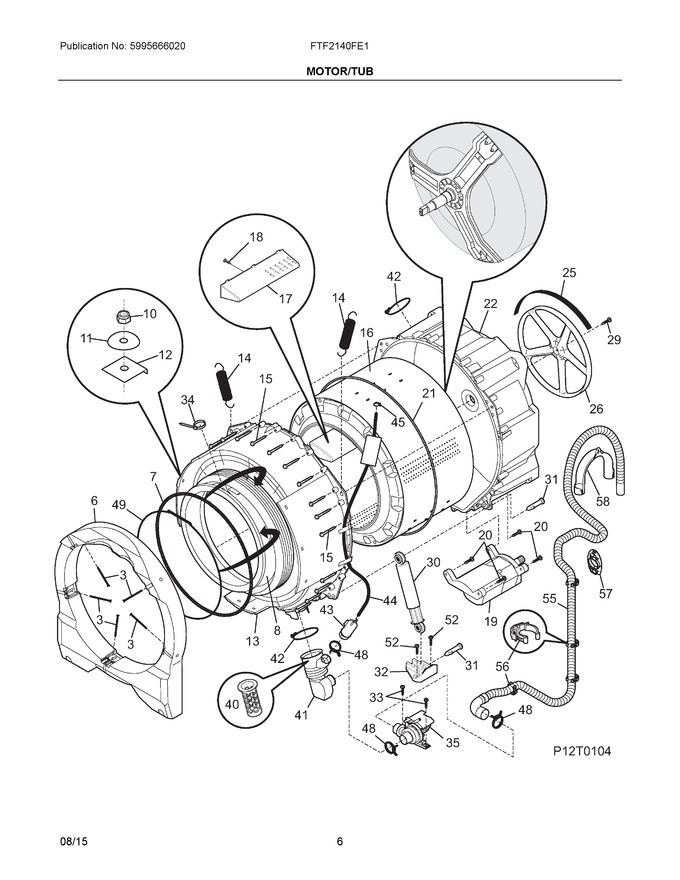

04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131793303		Bolt, Carriage, 1/4-20 X 2.60				$ 13.74
6	134362200		Counterweight, Front, One Piece				$ 195.83
7	134365300		Spring, Bellows Clamp, Retainer				$ 61.66
8	134515300		Bellows, Boot, No Light Hole   (Replaces: 134740900)			Immediately	$ 343.18
10	131304700		Nut, Hex, 1/4-20 Unc-2b, (2)				$ 8.14
11	131276900		Washer, Bellville, Spring Steel				$ 21.69
12	134430600		Plate, Counterweight				$ 10.40
13	134362000		Shell, Tub, Front				$ 417.85
14	137099300		Spring Assy, Suspension				$ 172.46
15	131303900		Screw, Hex Washer Head, 1/4-10a X 2.165				$ 15.60
16	137105900		Drum Assy, Spin Basket				$ 483.32
17	134361602		Vane Kit, Drum				$ 120.74
18	131302800		Screw, 10-16ab X 0.375			Immediately	$ 26.58
19	137043000		Motor, Cim			Immediately	$ 430.65
20	131303500		Screw, 12-14ab X 1.50, Motor Mtg.				$ 12.05
21	5304520351		O-ring, Tub   (Replaces: 134361900)				$ 98.32
22	134507120		Shell, Outer Tub, Rear, With Bearing				$ 566.20
25	134051003		Belt, Drive, 6-rib				$ 52.61
26	134362600		Pulley, Drum Drive, Large, Rear		Appelez-nous	-
29	134408400		Screw, 10.9 Class, M10 X 25 Mm				$ 17.72
30	5304485917		Shock Absorber, Assembly   (Replaces: 134560410)			Immediately	$ 45.44
31	131268300		Pin, Shock Mtg.			Immediately	$ 12.76
32	134363200		Bracket, Shock Mtg.				$ 19.13
33	134160900		Screw, Washer Hd, 10-16ab X 0.75				$ 12.05
34	5304464772		Cable Tie, 5.60 Inch   (Replaces: 5303321209)				$ 10.63
35	137221600		Pump, Drain   (Replaces: 137108100)			Immediately	$ 189.21
40	134885800		Filter, Pump				$ 7.25
41	134455900		Hose, Coin Trap, Tub-to-pump			Immediately	$ 70.85
42	134737300		Clamp, Hose				$ 20.13
43	137089000		Chamber, Air   (Replaces: 134369000)				$ 129.00
44	137089000		Hose, Air Pressure   (Replaces: 134369900)				$ 129.00
45	131306202		Clamp, Hose				$ 11.63
48	5304536802		Clamp, Hose, Wire   (Replaces: 131306234)			Immediately	$ 4.01
49	134527100		Clamp, Bellows, Spring Held			Immediately	$ 44.55
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
55	134889600		Hose, Drain-one Piece				$ 72.66
56	134781400		Fastener, Hose Clip				$ 13.49
57	134641100		Bracket, Drain Hose Mtg, Rear				$ 19.85
58	134440700		Hanger, Drain Hose				$ 13.55
NI	134817400		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
