SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

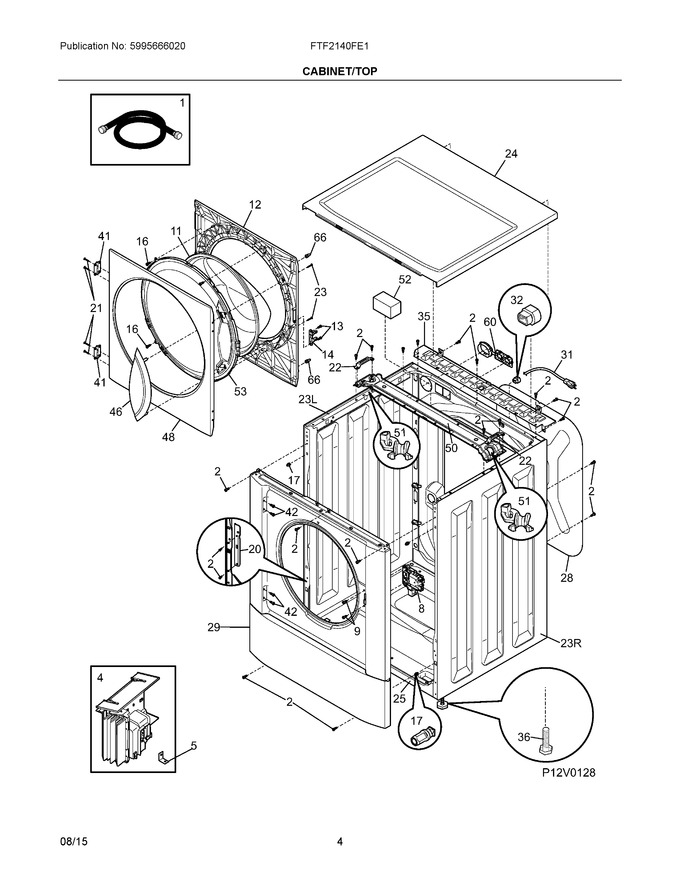

03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131454100		Hose, Water Inlet, 4 Ft., Hose & Washer		Appelez-nous	-
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	5304504863		Control Board, Motor   (Replaces: 134409905)			Immediately	$ 345.34
5	134522900		Bracket, Angle, Motor Control				$ 13.01
8	131763256		Door Lock/switch Assy   (Replaces: 131763245)			Immediately	$ 146.76
9	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
11	134366400		Panel, Door Glass				$ 313.91
12	134507360		Panel, Inner Door, With Bumper				$ 160.39
13	131302901		Screw, 10-16 X 0.750				$ 4.96
14	131763302		Striker, Door/lock   (Replaces: 131763340)			Immediately	$ 35.08
16	134178901		Screw, 8-18ab X 0.455				$ 14.89
17	134638700		Clip, Assembly		Appelez-nous	-
20	134434901		Bracket, Ls Panel, Reinforcement				$ 43.73
21	137361500		Screw, Comb Flat Head, 8-18ab X 0.75   (Replaces: 134424700)				$ 7.79
22	134648500		Bracket-spring, Retainer				$ 19.69
23	134522100		Screw, #12 Flat Head, 10-14p, Quad Drive				$ 18.90
24	134365060		Panel, Work Top, Black				$ 142.28
25	134775500		Base, Washer				$ 154.77
28	134364300		Panel, Service Access, Rear				$ 54.39
29	137021560		Panel, Cabinet Front, Black				$ 254.31
31	5304505407		Power Cord, Electric Svce   (Replaces: 134501000)				$ 88.20
32	5303209428		Bushing, Power Cord				$ 17.01
35	134365100		Bracket, Top Support, Rear				$ 150.99
36	134548800		Leveling Leg, Screw, Plastic			Immediately	$ 30.20
41	134412460		Hinge, Door, Black				$ 49.56
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Quad Drive			Immediately	$ 14.89
46	134412860		Handle, Door, Black			Immediately	$ 70.13
48	134913160		Panel, Outer Door, Black				$ 78.96
50	134645600		Bracket, Tub Suspension		Appelez-nous	-
51	134655800		Protector, Tub Suspension, Spring Hook, (2)				$ 4.45
52	131931202		Dampener, Vibration, Foam				$ 17.35
53	134507401		Adapter, Door Glass Ring				$ 173.62
60	134372000		Grommet, Dispenser, Back Panel				$ 30.47
66	134366560		Bumper, Door, Black		Appelez-nous	-
23L	134775360		Panel, Left Side, Black		Appelez-nous	-
23R	134775260		Panel, Right Side, Black		Appelez-nous	-
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76
NI	134876501		Clip, Hose, Drain, Rear-panel   (Replaces: 134876500)				$ 19.85
NI	134889700		Clip, Hose, Drain, Rear-panel				$ 18.38
NI	134591500		Plug Assy, Shipping Holes, Back				$ 46.78
NIA	134178901		Screw, Quadrex Ph, 8-18ab X 0.500   (Replaces: 131311900)				$ 14.89
NIA	134606800		Wiring Harness, Door Switch				$ 113.69
NIA	134547600		Wiring Harness, Motor Control				$ 70.09
NIA	137021600		Bracket, Mounting, Left, Front Panel				$ 11.96
NIA	134434900		Bracket, Rs Panel, Reinforcement		Appelez-nous	-
NIB	137021610		Bracket, Mounting, Right, Front Panel				$ 21.60

    View Diagram in Separate Window       Print Part List
