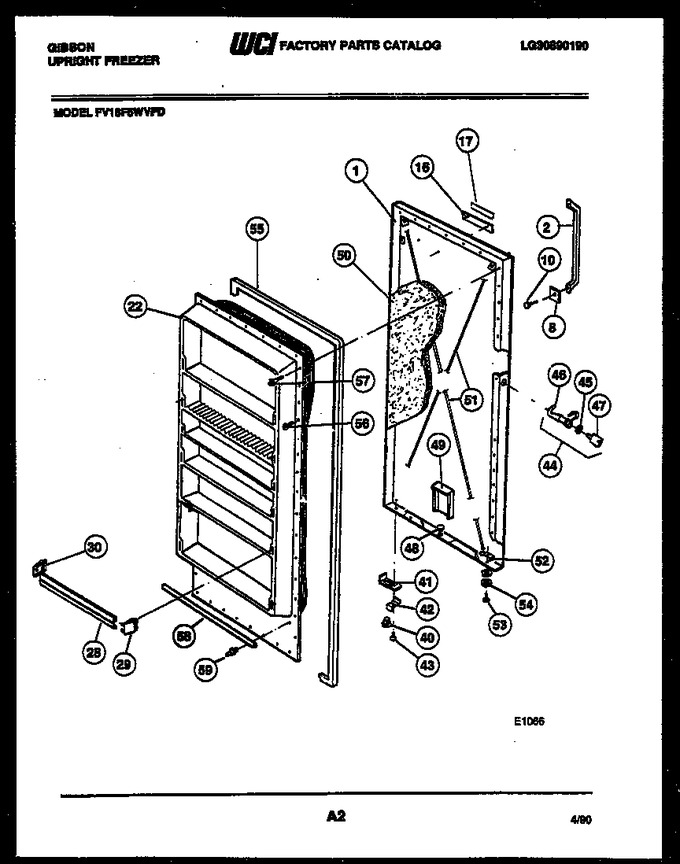

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F129300		Door Shell		Appelez-nous	-
2	531635521		Handle Door		Appelez-nous	-
8	G161863		Plate Reinforcement		Appelez-nous	-
10	G150543		Screw Handle		Appelez-nous	-
16	5317511702		Nameplate Bezel		Appelez-nous	-
17	F300246		Insert Nameplate		Appelez-nous	-
22	F127155-95		Panel-inner		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	F119967		Shelf-front Narrow (5)		Appelez-nous	-
29	5303925377		End Cap Rh Narrow (5)   (Replaces: 5308015541)			Immediately	$ 46.07
30	5303925377		End Cap Lh Narrow (5)   (Replaces: 5308015542)			Immediately	$ 46.07
40	5306593364		Bearing-top		Appelez-nous	-
40	08016490		Bearing-bottom		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	06593882		Door Stop		Appelez-nous	-
43	08005520		Screw-door Stop		Appelez-nous	-
44	5300190358		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key-lock (2)   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037415		Wire, Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206251		Gasket Door				$ 303.33
56	216858001		Screw, Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw Panel (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303091422		Rivet-gasket (5)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
