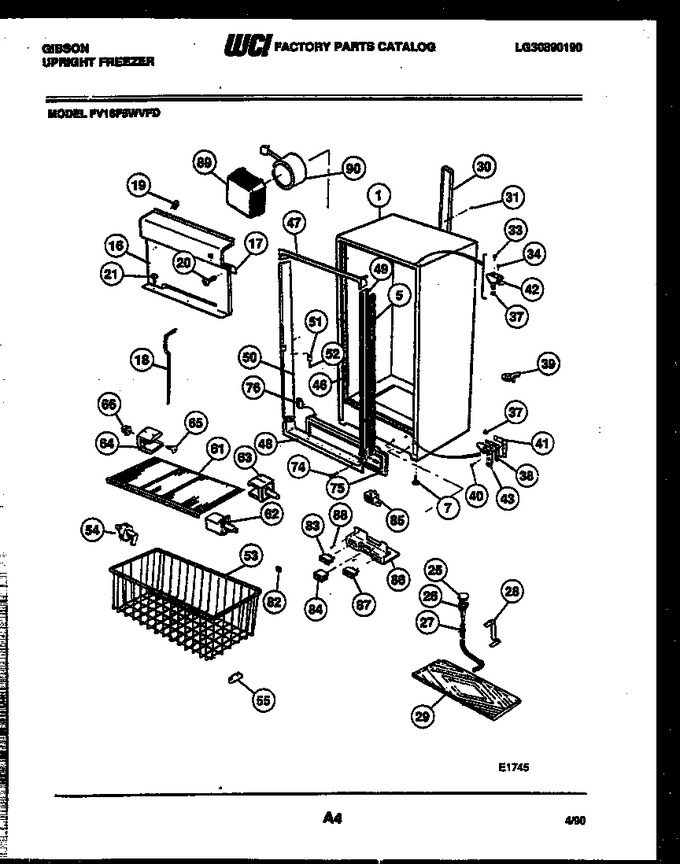

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 09950831 | Insulation |
|
- | |||||
| 7 | 5303205540 | Leg Leveler (4) |
|
- | |||||
| 16 | 06599550 | Panel-evaporator |
|
- | |||||
| 17 | 06599547 | Spacer |
|
- | |||||
| 18 | 5306599551 | Gasket Panel (2) |
|
- | |||||
| 19 | 09948978 | Insert Nut (6) |
|
- | |||||
| 20 | 216858001 | Screw-panel To Liner (6) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21 | 5303161233 | Screw-panel To Evaporator (3) |
|
- | |||||
| 25 | 216503100 | Screen, Drain (Replaces: 5308037403) |
|
$ 62.17 | |||||
| 26 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 27 | 08037416 | Hose |
|
- | |||||
| 28 | 06594637 | Clip |
|
- | |||||
| 29 | 5308016387 | Defrost Drain Pan |
|
- | |||||
| 30 | F91583-S | Guard |
|
- | |||||
| 31 | 06594661 | Screw |
|
- | |||||
| 33 | 06593898 | Screw |
|
- | |||||
| 35 | 06593894 | Plate |
|
- | |||||
| 36 | 08037848 | Screw Top Hinge-rear |
|
- | |||||
| 37 | 5300057523 | Bearing-top |
|
- | |||||
| 37 | 08016490 | Bearing-bottom |
|
- | |||||
| 38 | 5303207296 | Spacer |
|
- | |||||
| 39 | F000900253 | Ramp Door Closer |
|
- | |||||
| 40 | 154518001 | Screw-hinge Bottom (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 41 | 06594550 | Plate |
|
- | |||||
| 42 | 5308037946 | Hinge-top |
|
$ 56.91 | |||||
| 43 | 5306594549 | Hinge-bottom |
|
- | |||||
| 46 | 06594680 | Clip, Breaker |
|
- | |||||
| 47 | 06594559 | Breaker-top |
|
- | |||||
| 48 | 06594560 | Breaker-bottom |
|
- | |||||
| 49 | 08037994 | Breaker-hinge Side |
|
- | |||||
| 50 | 06599857 | Breaker-lock Side |
|
- | |||||
| 51 | 5309949966 | Latch-catch |
|
- | |||||
| 52 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 53 | 08010201 | Basket |
|
- | |||||
| 54 | 09948791 | Stop, Basket |
|
- | |||||
| 55 | 08009560 | Glide Basket (4) |
|
$ 35.25 | |||||
| 61 | 08037963 | Shelf-upper (3) |
|
- | |||||
| 61 | 08037964 | Shelf-lower |
|
- | |||||
| 62 | 5306594707 | Support, Front, Lh (5) |
|
- | |||||
| 62 | 5306594706 | Support, Front, Rh (5) |
|
- | |||||
| 63 | 5306594584 | Support, Rear (8) |
|
$ 19.80 | |||||
| 64 | 5306594585 | Support, Rear (2) |
|
- | |||||
| 65 | 08005520 | Screw-door Stop |
|
- | |||||
| 66 | 06594537 | Insert, Nut |
|
- | |||||
| 74 | 5309950066 | Pin (2) |
|
- | |||||
| 75 | 3206066 | Toe Grille |
|
- | |||||
| 76 | 5300118003 | Bumper (3) |
|
- | |||||
| 79 | F121216 | Handle Basket |
|
- | |||||
| 80 | 09950862 | End Cap |
|
- | |||||
| 82 | 5305878546 | Bumper Basket (2) |
|
$ 7.23 | |||||
| 83 | 5308002706 | Signal Light-amber |
|
$ 39.11 | |||||
| 84 | 5303017178 | Switch |
|
- | |||||
| 85 | 08016367 | Buzzer |
|
- | |||||
| 86 | 08016369 | Mounting Bracket-alarm |
|
- | |||||
| 87 | 08016772 | Signal Light-red |
|
- | |||||
| 88 | 08037851 | Screw |
|
$ 3.57 | |||||
| 89 | 3205349 | Housing-sensor |
|
- | |||||
| 90 | 5308037992 | Sensor Assembly |
|
$ 167.58 | |||||
| *29193 | F300210 | Wire Harness-alarm |
|
- | |||||
| 43A | 08037937 | Spacer-top Breaker (2) (non-illustrated) |
|
- | |||||
| 55A | F129805 | Spacers-basket (4) (non-illustrated) |
|
- |
