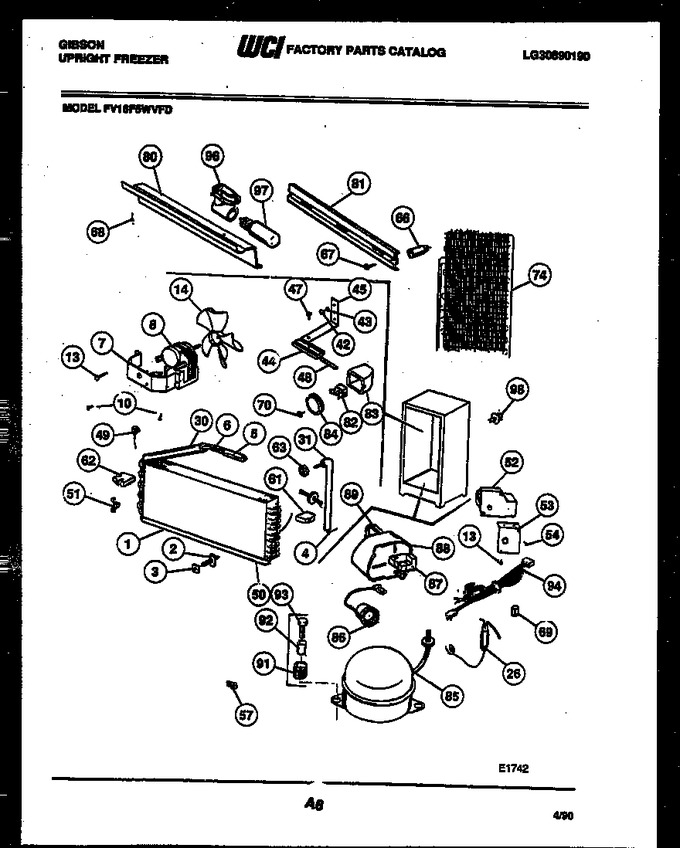

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205656 | Evaporator Assembly |
|
- | |||||
| 2 | 06599544 | Support, Evaporator |
|
- | |||||
| 3 | 08013198 | Spacer (2) |
|
- | |||||
| 4 | 3017673 | Heat Exchanger |
|
- | |||||
| 5 | F96886-1 | Sleeve Heat Exchanger |
|
- | |||||
| 6 | 08005187 | Sleeve Evap Tubing |
|
- | |||||
| 7 | 08013207 | Bracket Fan Motor |
|
$ 12.92 | |||||
| 8 | 3205519 | Fan Motor |
|
- | |||||
| 10 | 08037851 | Screw-bracket |
|
$ 3.57 | |||||
| 13 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 14 | 3205520 | Fan Blade |
|
- | |||||
| 26 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 30 | 06594625 | Insulation-heat Exchanger |
|
- | |||||
| 31 | 09948773 | Insulation |
|
$ 12.60 | |||||
| 42 | 08009412 | Screw |
|
- | |||||
| 43 | 5300095480 | Washer Bracket |
|
- | |||||
| 44 | 05878562 | Clamp |
|
- | |||||
| 45 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 47 | 5300052943 | Screw, Clamp |
|
$ 5.30 | |||||
| 48 | 08037932 | Sleeve Capillary Tube |
|
- | |||||
| 49 | 5303016814 | Switch, Termination |
|
- | |||||
| 50 | 5306599535 | Heater, Defrost |
|
- | |||||
| 51 | 06599536 | Clip, Heater |
|
- | |||||
| 52 | 5308037967 | Timer |
|
- | |||||
| 53 | 08016580 | Bracket |
|
- | |||||
| 54 | 08037849 | Screw, Timer |
|
$ 8.98 | |||||
| 57 | 05878556 | Clip, Compressor Wire |
|
- | |||||
| 61 | 06599531 | Air Seal, Rh |
|
- | |||||
| 62 | 3017674 | Air Seal, Lh |
|
- | |||||
| 63 | 06594629 | Grommet |
|
- | |||||
| 66 | 08000456 | Spacer Baffle Plate |
|
- | |||||
| 67 | 216858001 | Screw Plate (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 68 | F000012236 | Screw Shield |
|
- | |||||
| 69 | 08037401 | Retainer Harness |
|
$ 2.85 | |||||
| 70 | 09950853 | Screw, Knob |
|
- | |||||
| 74 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 80 | F128051 | Light Shield |
|
- | |||||
| 81 | F300248 | Baffle |
|
- | |||||
| 82 | 5308037961 | Cold Control |
|
- | |||||
| 83 | 5306599543 | Cover-cold Control |
|
- | |||||
| 84 | 5308013197 | Knob-cold Control |
|
- | |||||
| 85 | 5303916020 | Compressor |
|
- | |||||
| 86 | 3204568 | Overload |
|
- | |||||
| 87 | 3204565 | Relay |
|
- | |||||
| 88 | 5303006411 | Cover |
|
- | |||||
| 89 | 5303006412 | Clip Cover |
|
- | |||||
| 91 | 216498900 | Grommet (4) (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 92 | 5306594529 | Sleeve (3) |
|
$ 10.34 | |||||
| 93 | 08002679 | Screw (3) |
|
- | |||||
| 94 | F128933 | Harness Primary |
|
- | |||||
| 96 | 5300136117 | Socket |
|
$ 52.46 | |||||
| 97 | 5303091423 | Bulb |
|
- | |||||
| 98 | 5308037962 | Light Switch |
|
- | |||||
| 70A | 06594651 | Wire, Ground |
|
- | |||||
| 84A | 06599553 | Clip, Wires |
|
- |
