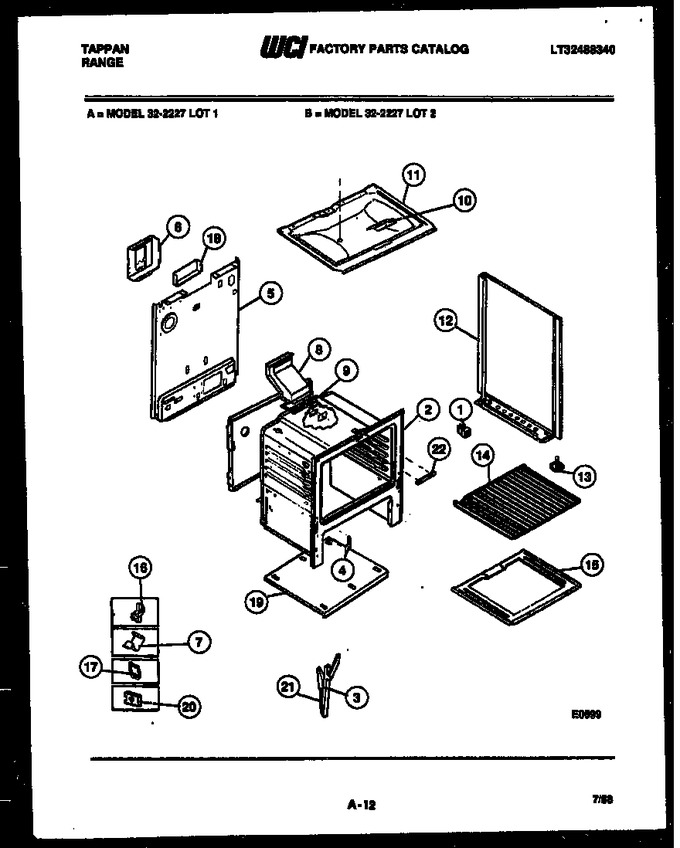

02 - Body Parts


03 - Backguard


04 - Cooktop Parts


05 - Burner, Manifold And Gas Control


06 - Door Parts


07 - Broiler Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	665T188P02		Spacer Bodyside		Appelez-nous	-
3	3131569		Chan Dr Hng		Appelez-nous	-
4	3131570		Cvr-hng Cutout				$ 7.35
5	3131567		Back, Main		Appelez-nous	-
6	665T421F02-18		Shld-rr Wall		Appelez-nous	-
7	145T130P01		Clip, Wire		Appelez-nous	-
8	3131193		Flue		Appelez-nous	-
9	269T094P01		Gasket Flue		Appelez-nous	-
10	3131101		Cover, Plate		Appelez-nous	-
11	095T030F02-86		Burner Box		Appelez-nous	-
12	3131454		Pnl. B/s (rh Almond)		Appelez-nous	-
13	636M004P01		Screw, Leveling		Appelez-nous	-
14	591T076P03		Rack Oven		Appelez-nous	-
15	058T036F02-86		Bottom, Oven		Appelez-nous	-
16	145T025P01		Clip Thermo Blb				$ 1.76
17	241T047P02		Fstnr, Wire		Appelez-nous	-
18	3131191		Cover, Flue		Appelez-nous	-
19	3131180		Base, Broil		Appelez-nous	-
20	241T017P235		Fstnr-8 Au Type		Appelez-nous	-
21	3131575		Chan Dr Hng Spr		Appelez-nous	-
22	174T335P01		Cover-fmt Main		Appelez-nous	-
*15450	316282700		Screw Oven Btm   (Replaces: 3131732)				$ 9.93
12A	3131453		Pnl. B/s (lh Almond)		Appelez-nous	-
15A	3131201		Insul. Oven Wrap (non-illustrated)		Appelez-nous	-
15B	3131246		Insul - Oven Back (non-illustrated)		Appelez-nous	-
16A	5304534000		Cord, Power (non-illustrated)   (Replaces: 3131425)			Immediately	$ 33.37
17A	3131114		Bumper Frt Main (non-illustrated)		Appelez-nous	-
18A	694T092F01		Supt Oven Btm (non-illustrated)		Appelez-nous	-
19A	3051218		Plate Ov Lt (non-illustrated)		Appelez-nous	-
19B	174T318F01-95		Cover-pwr Cord (non-illustrated)		Appelez-nous	-
21A	241T017P255		Fstnr-pwr Cord (non-illustrated)		Appelez-nous	-
