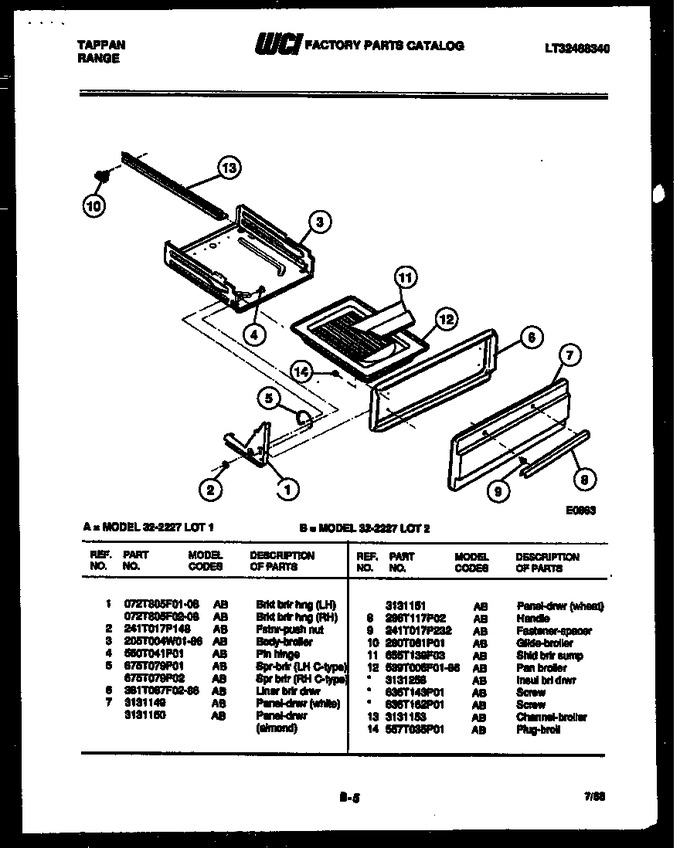

| 1 | 072T805F01-08 | Bracket, Broiler Hinge |
|
- | |||||
| 2 | 241T017P148 | Fstnr-push Nut |
|
- | |||||
| 3 | 205T004W01-86 | Body, Broiler |
|
- | |||||
| 4 | 550T041P01 | Pin, Hinge |
|
- | |||||
| 5 | 675T079P01 | Spr-brlr-lh-c Type |
|
- | |||||
| 6 | 381T087F02-86 | Liner-brlr Drwr |
|
- | |||||
| 7 | 3131150 | Panel-drwr (almond) |
|
- | |||||
| 8 | 296T117P02 | Handle |
|
- | |||||
| 9 | 241T017P232 | Fastener-spacer |
|
- | |||||
| 10 | 280T061P01 | Glide - Broiler |
|
- | |||||
| 11 | 655T139F03 | Shld Brlr Sump |
|
- | |||||
| 12 | 539T005F01-86 | Pan Broiler |
|
- | |||||
| 13 | 3131153 | Channel-broiler |
|
- | |||||
| 14 | 557T035P01 | Plug-broil |
|
- | |||||
| 12A | 3131258 | Insul, Brl, Drwr (non-illustrated) |
|
- | |||||
| 12B | 636T162P01 | Screw (non-illustrated) |
|
- | |||||
| 12B | 636T143P01 | Screw |
|
- | |||||
| 1A | 072T805F02-08 | Bracket, Broiler Hinge |
|
- | |||||
| 5A | 675T079P02 | Spr-brlr-rh-c Type |
|
- |
