Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 521T146P05 Pnl Manifold Appelez-nous -
2 3131609 Knob-(thermo) Appelez-nous -
3 358T197P07 Knob-(tp Vlv) Appelez-nous -
4 3131632 Maintop (almond) Appelez-nous -
5 618T038P05 Rod-mn Top Supt Appelez-nous -
6 3131286 Brkt Main Top Lh Appelez-nous -
7 3131287 Brkt Main Top Rh Appelez-nous -
8 283T013W01-18 Grate Appelez-nous -
9 3131190 Cover-vent Appelez-nous -
*15451 612T124P01 Retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

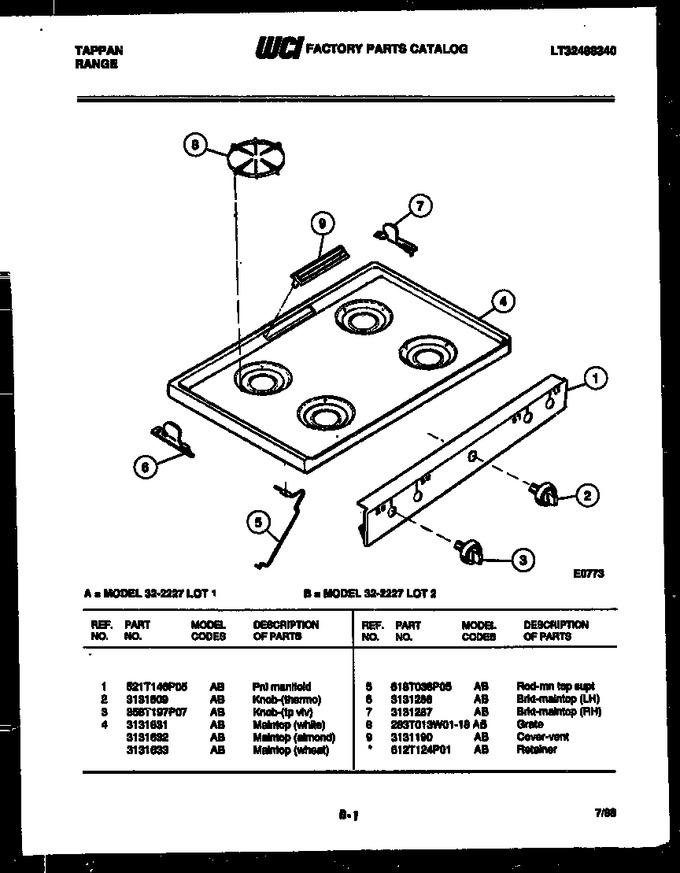

Diagram for 32-2227-23-01
