02 - Backguard


03 - Cooktop Parts


04 - Body Parts


05 - Burner, Manifold And Gas Control


06 - Broiler Drawer Parts


07 - Door Parts

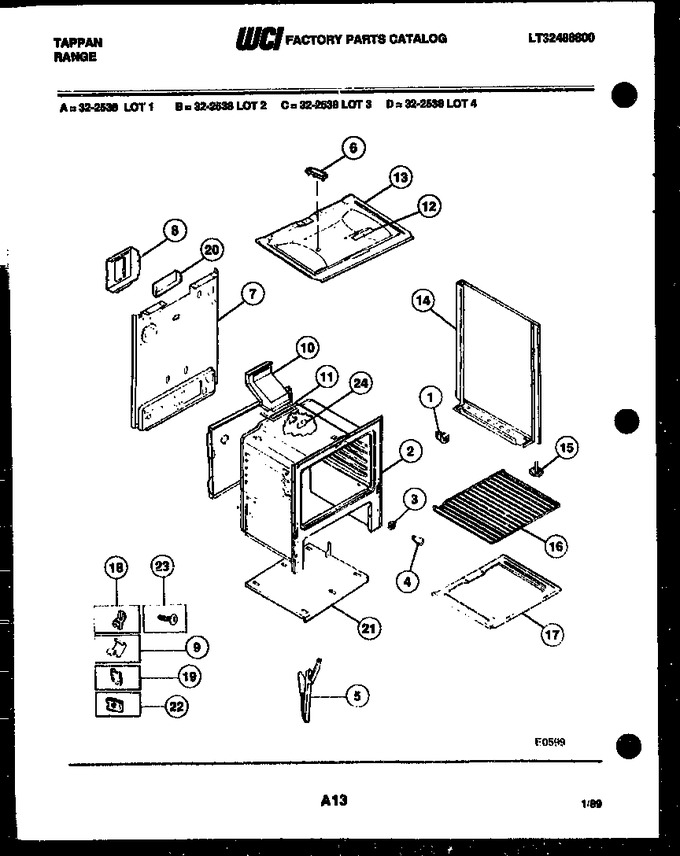

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	3014073		Socket-oven Light		Appelez-nous	-
4	3202007		Light Bulb		Appelez-nous	-
5	3131569		Channel, Door Hinge (2)		Appelez-nous	-
6	3015371		Cover-burner Box		Appelez-nous	-
7	3131567		Back, Main		Appelez-nous	-
8	3131660		Shield Rr Wall		Appelez-nous	-
9	3011813		Clip-wire				$ 14.79
10	3131909		Flue		Appelez-nous	-
11	3131355		Gasket, Flue		Appelez-nous	-
12	3018607		Cover Plate				$ 10.50
13	3131185		Burner Box		Appelez-nous	-
14	3131454		Panel-b/s (almd) Rh		Appelez-nous	-
15	08010569		Screw-level (4)		Appelez-nous	-
16	3131973		Rack, Oven (2)		Appelez-nous	-
17	058T036F02-86		Bottom, Oven		Appelez-nous	-
18	3011805		Clip - Thermostat		Appelez-nous	-
19	3012332		Fastener-wire		Appelez-nous	-
20	3131191		Cover, Flue		Appelez-nous	-
21	3131180		Base, Broil		Appelez-nous	-
22	241T017P235		Fastener, Hinge		Appelez-nous	-
23	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
24	3018607		Cover - Igniter				$ 10.50
14A	3131453		Panel-b/s (almd) Lh		Appelez-nous	-
17A	3017142		Insulation, Oven Wrap (non-illustrated)				$ 193.50
17B	3131246		Insulation-oven Back (non-illustrated)		Appelez-nous	-
18A	3012327		Fastener-power Cord (non-illustrated)		Appelez-nous	-
20A	3131172		Cover-rear Wall (non-illustrated)		Appelez-nous	-
20B	3014226		Support-oven Bttm (2) (non-illustrated)		Appelez-nous	-
21A	3018615		Plate-oven Light (non-illustrated)		Appelez-nous	-
21B	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
22A	3015372		Cover-front Main (non-illustrated)		Appelez-nous	-
23A	3131101		Cover-plate (non-illustrated)		Appelez-nous	-
6A	5304534377		Cord, Power (non-illustrated)   (Replaces: 3202006)				$ 26.85
