02 - Backguard


03 - Cooktop Parts


04 - Body Parts


05 - Burner, Manifold And Gas Control


06 - Broiler Drawer Parts


07 - Door Parts

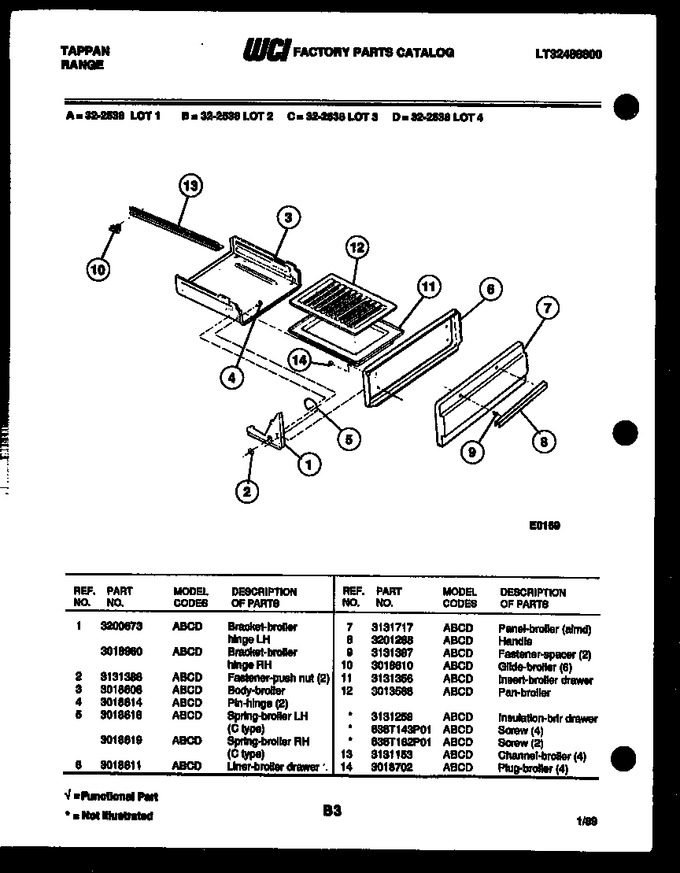

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3200673		Bracket, Broiler Hinge, Lh		Appelez-nous	-
2	3131386		Fastener, Push Nut (2)		Appelez-nous	-
3	3018608		Body, Broiler		Appelez-nous	-
4	3018614		Pin, Hinge (2)		Appelez-nous	-
5	3018618		Spring, Broiler Lh C Type		Appelez-nous	-
6	3018611		Liner-broiler Drawer		Appelez-nous	-
7	3131717		Panel-broiler Almd		Appelez-nous	-
8	3201268		Handle		Appelez-nous	-
9	3131387		Fastener-spacer (2)		Appelez-nous	-
10	3018610		Glide-broiler (6)				$ 29.40
11	3131356		Insert-broiler Drawer		Appelez-nous	-
12	3013568		Pan, Broiler		Appelez-nous	-
13	3131153		Channel, Broiler (4)		Appelez-nous	-
14	3018702		Plug - Broiler (4)		Appelez-nous	-
12A	3131258		Insulation-brlr Drawer (non-illustrated)		Appelez-nous	-
12B	636T162P01		Screw (2) (non-illustrated)		Appelez-nous	-
12B	636T143P01		Screw		Appelez-nous	-
1A	3018960		Bracket-broiler Hinge Rh		Appelez-nous	-
5A	3018619		Spring, Broiler, Rh, C Type		Appelez-nous	-
